ASTM B466 Standard 10inch Copper-Nickel Flange Connector, UNS C70600, RF/RTJ
| Place of Origin | CHINA |
|---|---|
| Brand Name | TOBO |
| Certification | ISO |
| Model Number | Copper Nickel Flange |
| Minimum Order Quantity | 50 |
| Price | NEGOTIATION |
| Packaging Details | CARTON |
| Delivery Time | 15WORKSDAY |
| Payment Terms | L/C, T/T |
| Supply Ability | NEGOTIATION |
Product Details
| Productname | Copper Nickel Flange | Level | 1 |
|---|---|---|---|
| Material | Copper Nickel Alloy | Austenitic Stainless | C71500 |
| Surface Treatment | Polished, Sand Blasted, Etc. | Standard | ASTM B466 |
| Hardness | HB 90-110 | Connection | Welding |
| Package | Wooden Cases, Wooden Pallet, Etc. | Sizerange | 1/2 Inch To 48 Inches |
| Temperaturerange | -200°C To 400°C | Heat Treatment | Normalizing, Annealing, Quenching, Etc. |
| Price Term | CIF CFR FOB Ex-Work | Corrosion Resistance | Excellent |
| Type | Weld Neck, Slip On, Blind, Threaded | ||
| Highlight | 10inch copper nickel flange connector,ASTM B466 copper nickel flange,RF RTJ copper nickel flange |
||
Product Description

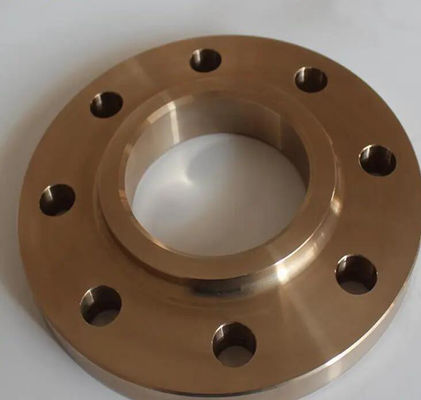

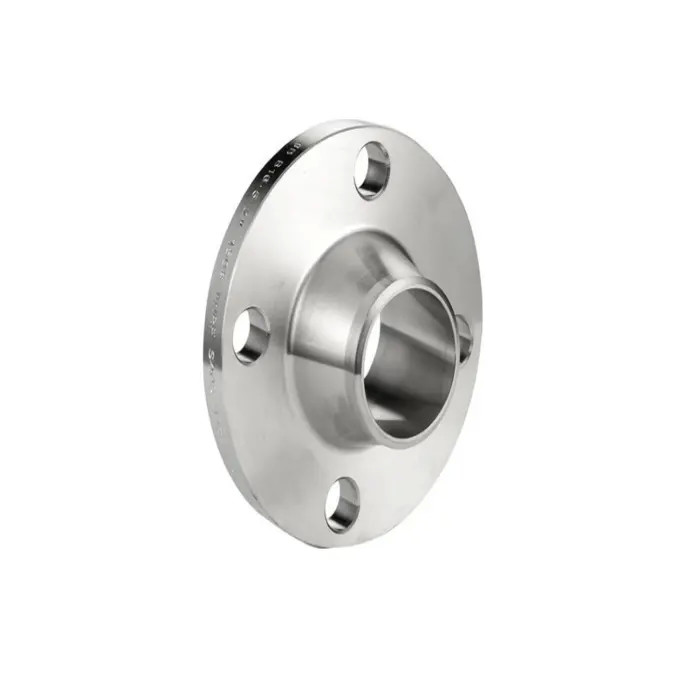

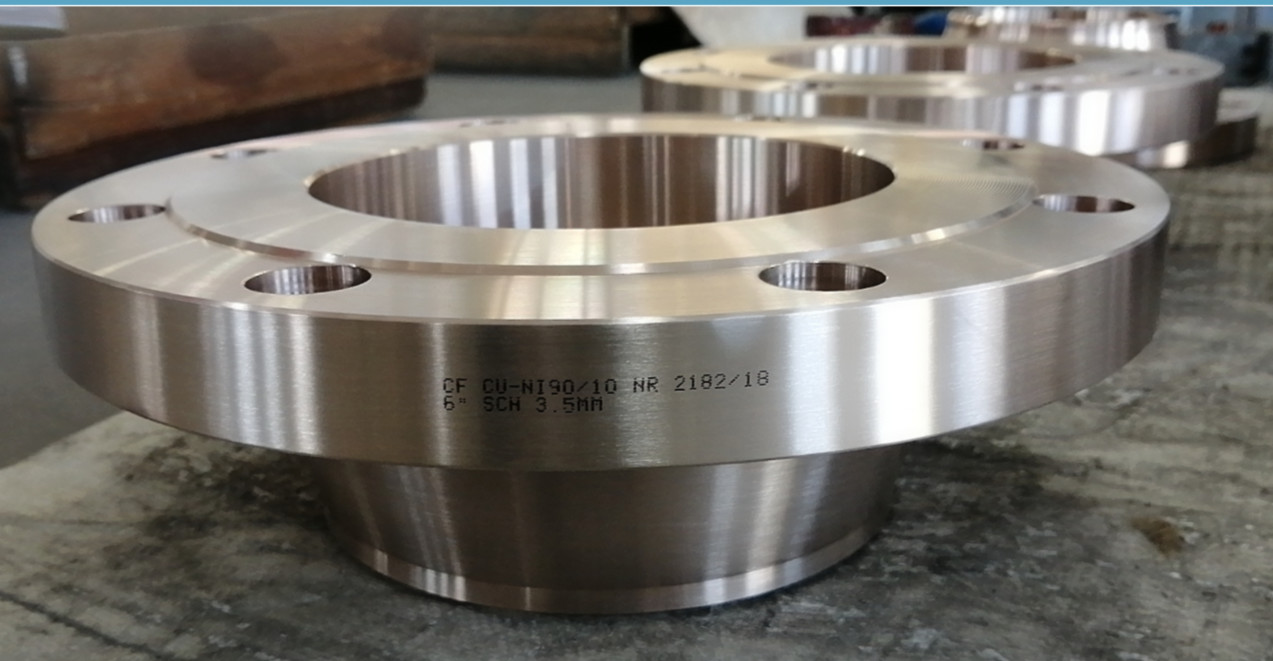

ASTM B466 Standard 10inch Copper-Nickel Flange Connector, UNS C70600, RF/RTJ
Our metal slip-on flange connectors are made of high-quality copper-nickel alloy (UNS C70600), strictly complying with ASTM B466 standard and UNS C70600 material requirements. With a nominal size of 10 inches, these flanges are designed as slip-on type for easy installation and firm connection.
The copper-nickel (Cu-Ni) material ensures excellent corrosion resistance, making them suitable for harsh working environments such as marine, chemical, and offshore applications. The flange features two types of sealing faces: Raised Face (RF) and Ring Type Joint (RTJ), which can be selected according to actual connection needs.
Each flange undergoes strict quality inspection, including material composition testing, pressure resistance test, and dimensional verification, to ensure stable performance and reliable sealing. The slip-on design allows for quick and convenient installation, while the forged structure ensures high strength and durability. Widely used in pipeline systems that require corrosion resistance and high-pressure bearing capacity, these 10-inch copper-nickel flanges provide a safe and long-lasting connection solution for industrial, marine, and chemical pipeline projects.
Product Category
Product Description
Copper and nickel flanges ASTM B466 UNS C70600 Size 10inch 150#-2500# Slip On flange connector
| Product Name | Flange |
| Standard | ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Type | ASTM:Slip on welding flange |
| Materials |
Stainless steel:ASTM/ASMES/A182F304 | F304L |F304H | F316 | F316L | F321 | F321H | F347 |31Ti 309S |310S | 405 |409 |410 | 410S | 416 | 420 | 430 | 630 | 660 | 254SMO | 253MA | 353MA Nickel Alloy: ASTM/ASME S/B366 UNS N08020| N04400|N06600| N06625| N08800| N08810|N08825| N10276|N10665|N10675|Incoloy 800 | Incoloy 800H | Incoloy 800HT | Incoloy 825 | Incoloy 901 | Incoloy 925 | Incoloy 926, Inconel 600 | Inconel 601 | Inconel 625 | Inconel 706 | Inconel 718 | Inconel X-750, Monel 400 | Monel 401 | Monel R 405 | Monel K 500 Copper nickel:The main material is 90/10 Copper Nickel , 70/30 Copper Nickel. Hastelloy:HastelloyB | HastelloyB-2 | HastelloyB-3 | HastelloyC-4 | Hastelloy C-22 | Hastelloy C-276 | Hastelloy X |Hastelloy G | Hastelloy G3 Ti alloy:ASTM R50250/GR.1 | R50400/GR.2 | R50550/GR.3 | R50700/GR.4 | GR.6 |R52400/GR.7 | R53400/GR.12 | R56320/GR.9 |R56400/GR.5 Carbon steel: A105 A350 A694(F52 F56 F60 F65 F70 F80) |
| Marking | Supply Logo + Standard + Size(mm) + HEAT NO +or as your requirement |
Related Products
Company Information
Product testing
Process flow
Certification
Our Advantages
FAQ
Packaging&Shipping

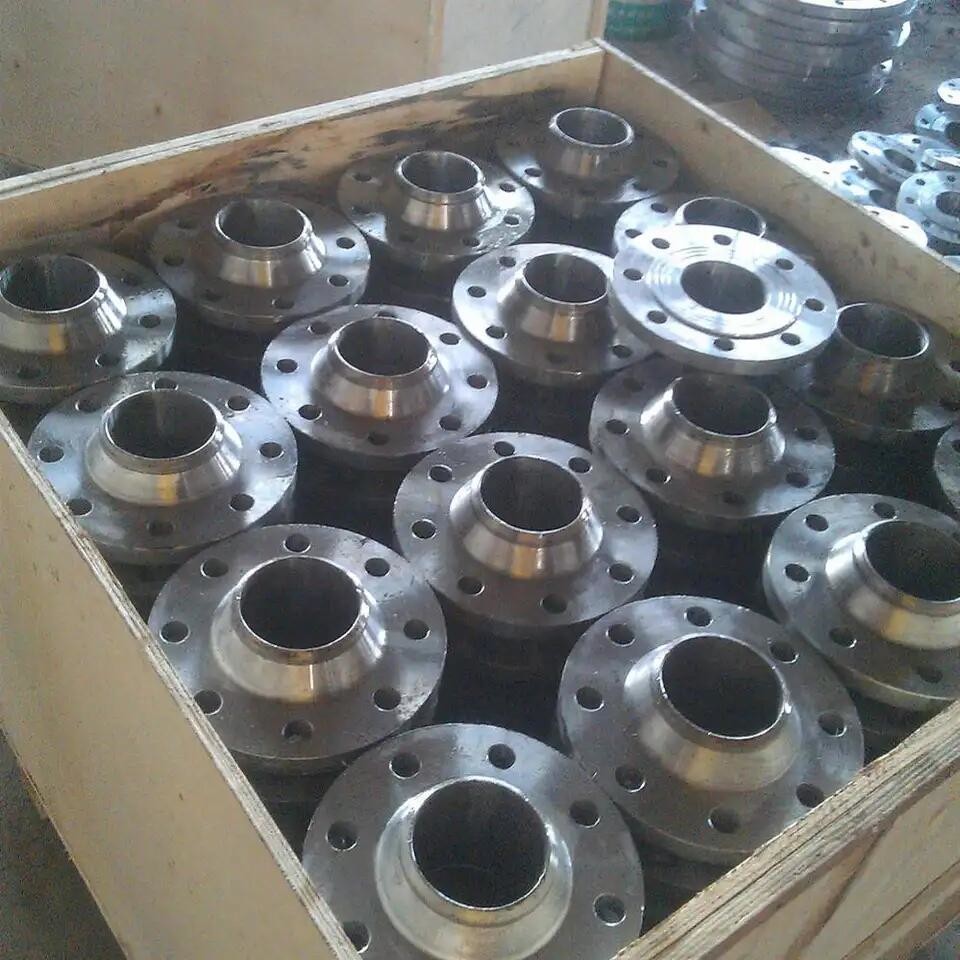

Package:Standard export carton packing.
Delivery time:stock-45 days after confirming order,detail delivery date should be decided according to production season and order quantity.
