EEMUA 234/1-2 Seamless CuNi 90/10 C70600 Alloy Tubes 16 Bar Copper Nickel Pipe

  • EEMUA 234/1-2 Seamless CuNi 90/10 C70600 Alloy Tubes 16 Bar Copper Nickel Pipe
  • EEMUA 234/1-2 Seamless CuNi 90/10 C70600 Alloy Tubes 16 Bar Copper Nickel Pipe
  • EEMUA 234/1-2 Seamless CuNi 90/10 C70600 Alloy Tubes 16 Bar Copper Nickel Pipe
  • EEMUA 234/1-2 Seamless CuNi 90/10 C70600 Alloy Tubes 16 Bar Copper Nickel Pipe
Place of Origin China
Brand Name TOBO
Certification API/ SGS
Model Number EEMUA 234
Minimum Order Quantity 6 meter
Price Negotiable according to quantity
Packaging Details Standard seaworthy export package or as required
Delivery Time 10-30 workdays
Payment Terms L/C, T/T, Western Union
Supply Ability 300000 tons per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Grade EEMUA 234 Type SMLS Pipe
Alloy Or Not Alloy Length 6m/12m
Specification Customized Material CuNi 90/10 CuNi 70/30
Shape Round Wall Thickness Customized
Application Air Condition Or Refrigerator,Oil Cooler Pipe,Water Tube,heat Exchanger,air-conditioner Ect. Price Term CIF CFR FOB Ex-Work
Package Standard Export Package Or As Required
Highlight

16 Bar Copper Nickel Pipe

,

C70600 Alloy Tubes
Leave a Message
Product Description

EEMUA 234/1-2 Seamless CuNi 90/10 C70600 Alloy Tubes 16 Bar Copper Nickel Pipe



Products Specification



Seamless Pipes
Seamless pipes are in accordance with EEMUA 234/chapter 1. They are manufactured from hot extruded shells followed by cold work and annealing.


Welded Pipes
Longitudinally welded pipes are in accordance with EEMUA 234/chapter 2. They are manufactured from hot rolled or cold rolled and annealed sheet or plates in accordance with BS 2870, BS2875, ASTM B171 or ASTM B402. Mechanical testing is carried out in accordance with the standards above. The pipes are supplied in “as welded” condition.



The addition of nickel to copper improves its strength and durability as well as its resistance to corrosion, erosion andcavitation in all natural waters, including seawater and brackish,treated or polluted waters. Copper-nickel alloys also showexcellent resistance to stress-corrosion cracking and corrosionfatigue. The added advantage of resistance to bio-fouling make itan ideal material for application in marine and chemicalenvironments such as ship and boat hulls, desalination plants,heat exchange equipment, seawater and hydraulic pipelines, oilrigs and platforms, fish-farming cages and seawater intakescreens.





Copper Nickel has a Yield Strength of 103 MPa (15000 psi). The Rockwell B Hardness of Copper nickel is 69. The Machinability of Copper nickel is 20. Copper Nickel 90/10 offers superb resistance to brackish water, biofouling in seawater, erosion and stress corrosion. It has superb welding and fabrication properties. As far as hydrogen embrittlement goes, 90/10 copper nickel has a very high resistance to this. Cu-Ni 90/10 is very popular for use in industrial, architectural and marine applications, as it has high ductility and toughness. The Elastic Modulus of Copper nickel is 152 GPa (22000 ksi). The Thermal Conductivity of Copper nickel is 32.9 W/mK (0.0900 BTU in/hr.ft². °F). 90/10 copper nickel has superb antimicrobial properties, which means that it has the capability to kill a huge range of microbes, up to 99.9%, including the likes of Clostridium difficile, E. coli, MRSA and influenza A (H1N1), within a span of just a couple of hours.



1. Certification: ISO, ROHS, SGS

2. Available Packing: Plastic bags+Chipboard Cartons+Plywood pallet with Belt &Film.

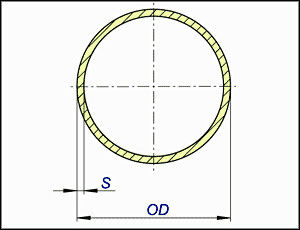

Dimensions (mm)
Seamless Pipe
Size
Nominal (in)		 Size
Specified (mm)		 Specified Wall Thickness (mm) t Theoretical Weight/Metre (kg)
16bar 20 bar 16bar 20bar
1/2 16 2.0 2.0 0.78 0.78
3/4 25 2.0 2.0 1.29 1.29
1 30 2.5 2.5 1.93 1.93
1 1/4 38 2.5 2.5 2.49 2.49
1 1/2 44.5 2.5 2.5 2.94 2.94
2 57 2.5 2.5 3.82 3.82
2 1/2 76.1 2.5 2.5 5.15 5.15
3 88.9 2.5 2.5 6.05 6.05
4 108 3.0 3.0 8.82 8.82
6 159 3.0 3.5 13.10 15.24
8 219.1 4.0 4.5 24.10 27.04
10 267 4.5 5.5 33.10 40.27
12 323.9 5.5 7.0 49.05 62.10
14 368 6.5 8.0 65.80 80.64
16 419 7.0 9.0 80.75 103.32



Trade Name UNS Copper Nickel Industry Specifications Chemical Composition Min.Tensile
(KSI)		 Min.Yield
(KSI)		 Elongation
%
CuNi 90/10 UNS C70600
UNS C70620		 ASME SB111, SB171, SB359, SB395, SB466, SB467, SB543
ASTM B111, B122, B151, B171, B359, B395, B432, B466, B467, B543, B608 DIN 2.0872 MIL C-15726, T-15005, T-16420, T-22214 SAE J461, J463		 Cu 88.6 min
Pb .05 max*
Fe 1.8 max
Zn 1 max*
Ni 9-11 max
Mn 1.0 max		 38 15 30
CuNi 90/10 UNS C7060X EEMUA 144 90/10, 145 90/10, 14 90/1 Cu rem.
Pb .01 max
Fe 1.5-2.0
Zn 0.2 max
P 0.2 max
S 0.2 max
Ni 10-11
Mn 0.5-1.0		 40 15 30
CuNi 70/30 UNS C71500
UNS C71520		 ASME SB111, SB171, SB359, SB395, SB466, SB467, SB543
ASTM B111, B122, B151, B171, B359, B395, B432, B467, B543, B552, B608, F467, F468
DIN 2.0882
MIL C-15726, T-15005, T-16420, T-22214
SAE J461, J463		 Cu rem (65.0 min)
Pb .05 max*
Fe 0.4-1.0
Zn 1 max*
Ni 29-33
Mn 1 max		 52 18 45
CuNi 70/30 UNS C71640 ASTM B111, B543, B552 Cu rem
Pb .05 max*
Fe 1.7-2.3
Zn 1 max*
Ni 29-32
Mn 1.5-2.5		 63 25 –




Material
ASTM :Copper (C10200,C11000,C10100,C10200,C12000,)C11600,
Brass(C21000,C22000,C23000,C24000,C26000,C27000,C27200,
C27400,C2800,C31400,C33000,C35600,C37100,C36000,
C35300,C37100,C37700,C37710,C37000,C68700,C41100,C44300,
C46200.C46400,C26130,C65600,)
Bronze(C50500,C51100,C52100,C60800,C61000,C61900,C63010,
C62300,C63000,C63280,C63020,C17200,C17000,
C17500,C17510,C18200,C18100,C18200,C16200,C19400,C14500)
Cupronickel(C70400,C71000,C71300,C71500,C70400,C70600,
C75200,C77000,C75400,C79000,C79200)
Specifications
thickness 1mm to 220mm ,diameter 6mm to 2500mm
or as customer required
Price Term
EX-Work, FOB, CFR, CIF
Application
The copper tubes are made of pure electrolysis copper.
They are precise in size and smooth on surface. Besides,
they are of good heat conductibility.
Thus, they are widely used for heat exchangers, radiators,
coolers, electro-heat-up pipe,
Air conditioner and refrigerators. The straight pipes can be
used for oil transportation, brake pipes, water pipes and gas
pipes for construction.
Delivery Time
According to customer' s quantity.

Export standard package, bundled or be required. The inner size of container is below:
20ft GP: 5.9m(length) x 2.13m(width) x2.18m(high)about 24-26CBM
40ft GP: 11.8m(length) x 2.13m(width) x2.18m(high) about 54CBM
40ft HG: 11.8m(length) x 2.13m(width) x2.72m(high) about 68CB

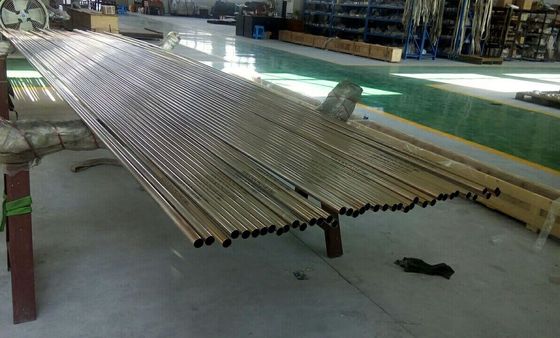

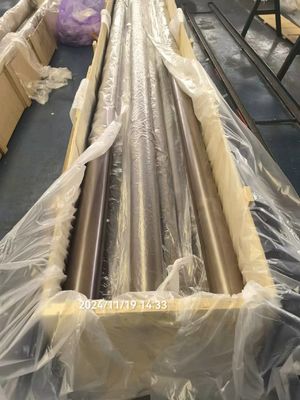

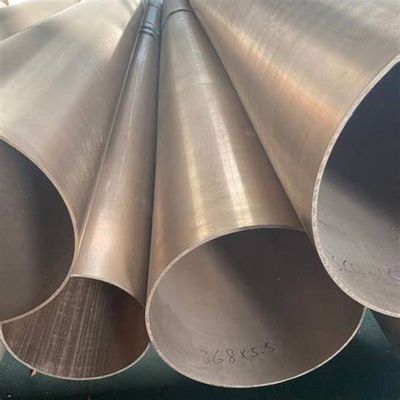

Product Show
EEMUA 234/1-2 Seamless CuNi 90/10 C70600 Alloy Tubes 16 Bar Copper Nickel Pipe 0
EEMUA 234/1-2 Seamless CuNi 90/10 C70600 Alloy Tubes 16 Bar Copper Nickel Pipe 1


FAQ
1.How do you let me trust you?
We are a Golden supplier in Alibaba who do business for more than 8 years. You can make an order by Alibaba to us directly.

2.How about your price?
High-quality products with a reasonable price suitable for your market.

3.How do you control your quality?
We request a QC inspection for each batch of goods. And we can provide you inspection report and mill certificate if you want..

4.Could you provide free samples?
For new customers, We can provide free samples for standard fasteners. But the clients will pay the express charges. For regular customers, We will send you free samples and pay express charges by ourselves.

5.How about your delivery time?
Generally speaking, All the goods have stock with little quantity, we can delivery them with one week. If the quantity is 1-2container, we can give you with 15-35days.

6.What is your payment term?
We can accept T/T for general order. For new customer, we request 20%-50% T/T in advance, and balance payment should against B/L copy. For regular customer, we can provide delay payment after B/L date about 30-90 days.

7. How can I contact you?



MY CONTACT: sales28@tobo-group.com Or WhatsAPP 8619370737339
