China Factory Cooper Nickel Stub End Fittings DIN15-600 70/30 90/10 Long Weld Lap Joint

  • China Factory Cooper Nickel Stub End Fittings DIN15-600 70/30 90/10 Long Weld Lap Joint
  • China Factory Cooper Nickel Stub End Fittings DIN15-600 70/30 90/10 Long Weld Lap Joint
Place of Origin China
Brand Name TOBO
Certification BV/ SGS/ TUV/ ISO
Model Number Stub End
Minimum Order Quantity 1 PC
Price Negotiatable
Packaging Details plywood case or pallet
Delivery Time 15workdays
Payment Terms Western Union, T/T,
Supply Ability 100000000 Piece/Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Cooper Nickel Size Customized
Product Name Stub End Connection Welding
Head Code Round Surface Paint Spraying
Place Of Origin China Technics Casting
Leave a Message
Product Description
China Factory Cooper Nickel Stub End Fittings DIN15-600 70/30 90/10 Long Weld Lap Joint
Product Description



Lap Joint Stub Ends
ASME B16.9,MSS SP-43 1/2
Nominal Pipe Size Outside Diameter at Bevel Length Radius of Fillet Diameter of Lap
A B
NPS D L R G
1/2
3/4
1		 21.3
26.7
33.4		 51
51
51		 3.0
3.0
3.0		 0.8
0.8
0.8		 35
43
51
11/4
11/2
2		 42.2
48.3
60.3		 51
51
64		 5.0
6.0
8.0		 0.8
0.8
0.8		 64
73
92
21/2
3
31/2		 73.0
88.9
101.6		 64
64
76		 8.0
10.0
10.0		 0.8
0.8
0.8		 106
127
140
4
5
6		 114.3
141.3
168.3		 76
76
89		 11.0
11.0
13.0		 0.8
1.6
1.6		 157
185
218
8
10
12		 219.1
273.0
323.8		 102
127
152		 13.0
13.0
13.0		 1.6
1.6
1.6		 270
324
381
14
16
18		 355.6
406.4
457.0		 152
152
152		 13.0
13.0
13.0		 1.6
1.6
1.6		 413
470
533
20
22
24		 508.0
559.0
610.0		 152
152
152		 13.0
13.0
13.0		 1.6
--
1.6		 584
641
692
•Minimum lap thickness shall not be less than nominal wall thickness.
•Contact faces of stub ends shall have a concentric serration or spiral according to the purchaser's requirements.
•These lengths and radius apply for schedule 40s or thinner stainless steel pipes.
•Radius of fillet B is only effective to MSS SP-43 lap joint stub ends.
Product show

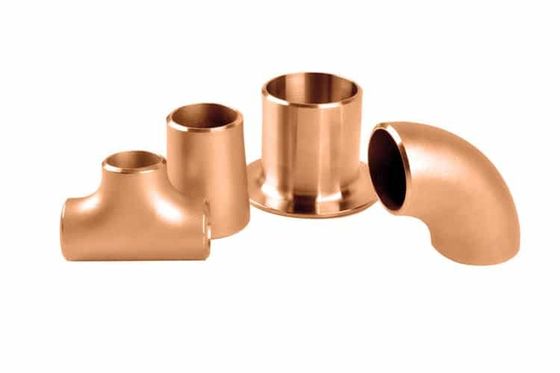

China Factory Cooper Nickel Stub End Fittings DIN15-600 70/30 90/10 Long Weld Lap Joint 0

Why Choose Us?



1. 20 + years of production experience at your service.
2. The fastest delivery
3. The lowest price
4. Most comprehensive standards and materials for your choice.
5. 100% export.
6. Our products export to Africa, Oceania, mid east, eastern Asia, Western Europe etc.



Packing & Shipping



Packaging Details: Pallet/Wooden Case or as per your Specification



Delivery Detail: Shipped in 30 days after payment

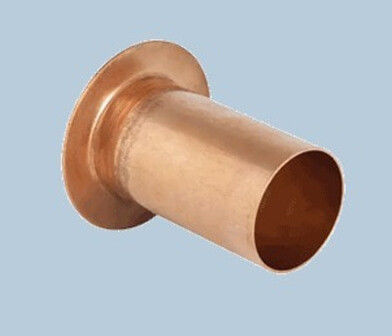

China Factory Cooper Nickel Stub End Fittings DIN15-600 70/30 90/10 Long Weld Lap Joint 1


FAQ



Q: Are you trading company or manufacturer ?

A: We are factory.



Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 50% T/T in advance ,balance before shippment.
