Inconel 800HT B407 Butt Welding Copper Nickel Tube 100mm 80mm 1'' 3'' 2'' 1/2

Place of Origin China
Brand Name TOBO
Certification API/ SGS
Model Number B407
Minimum Order Quantity 10 meter
Price Negotiable according to quantity
Packaging Details Standard seaworthy export package or as required
Delivery Time 7-45 workdays
Payment Terms L/C, T/T, Western Union
Supply Ability 300000 tons per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Grade Cooper Application Air Condition Or Refrigerator,Oil Cooler Pipe,Water Tube,heat Exchanger,air-conditioner Ect.
Type Inconel800HT Alloy Or Not Is Alloy
Length Required Shape Round
Price Term CIF CFR FOB Ex-Work Package Standard Seaworthy Export Package Or As Required
Wall Thickness Customized
Leave a Message
Product Description

Nickel Alloy Butt Welding Pipes Cooper Nickel 1'' Inconel 800HT B407 100mm 80mm 3'' 2'' 1/2

Products Specification

Copper Nickel Pipe Seamless Pipe 3" STD Inconel 800HT B407 100mm 80mm 3'' 2'' 1/2 High Quality

Seamless Pipes
Seamless pipes are in accordance with EEMUA 234/chapter 1. They are manufactured from hot extruded shells followed by cold work and annealing.
Welded Pipes
Longitudinally welded pipes are in accordance with EEMUA 234/chapter 2. They are manufactured from hot rolled or cold rolled and annealed sheet or plates in accordance with BS 2870, BS2875, ASTM B171 or ASTM B402. Mechanical testing is carried out in accordance with the standards above. The pipes are supplied in “as welded” condition.


1. Certification: ISO, ROHS, SGS

2. Available Packing: Plastic bags+Chipboard Cartons+Plywood pallet with Belt &Film.

Dimensions (mm)
Seamless Pipe
Size
Nominal (in)
Size
Specified (mm)
Specified Wall Thickness (mm) t Theoretical Weight/Metre (kg)
16bar 20 bar 16bar 20bar
1/2 16 2.0 2.0 0.78 0.78
3/4 25 2.0 2.0 1.29 1.29
1 30 2.5 2.5 1.93 1.93
1 1/4 38 2.5 2.5 2.49 2.49
1 1/2 44.5 2.5 2.5 2.94 2.94
2 57 2.5 2.5 3.82 3.82
2 1/2 76.1 2.5 2.5 5.15 5.15
3 88.9 2.5 2.5 6.05 6.05
4 108 3.0 3.0 8.82 8.82
6 159 3.0 3.5 13.10 15.24
8 219.1 4.0 4.5 24.10 27.04
10 267 4.5 5.5 33.10 40.27
12 323.9 5.5 7.0 49.05 62.10
14 368 6.5 8.0 65.80 80.64
16 419 7.0 9.0 80.75 103.32



Trade Name UNS Copper Nickel Industry Specifications Chemical Composition Min.Tensile
(KSI)
Min.Yield
(KSI)
Elongation
%
CuNi 90/10 UNS C70600
UNS C70620
ASME SB111, SB171, SB359, SB395, SB466, SB467, SB543
ASTM B111, B122, B151, B171, B359, B395, B432, B466, B467, B543, B608 DIN 2.0872 MIL C-15726, T-15005, T-16420, T-22214 SAE J461, J463
Cu 88.6 min
Pb .05 max*
Fe 1.8 max
Zn 1 max*
Ni 9-11 max
Mn 1.0 max
38 15 30
CuNi 90/10 UNS C7060X EEMUA 144 90/10, 145 90/10, 14 90/1 Cu rem.
Pb .01 max
Fe 1.5-2.0
Zn 0.2 max
P 0.2 max
S 0.2 max
Ni 10-11
Mn 0.5-1.0
40 15 30
CuNi 70/30 UNS C71500
UNS C71520
ASME SB111, SB171, SB359, SB395, SB466, SB467, SB543
ASTM B111, B122, B151, B171, B359, B395, B432, B467, B543, B552, B608, F467, F468
DIN 2.0882
MIL C-15726, T-15005, T-16420, T-22214
SAE J461, J463
Cu rem (65.0 min)
Pb .05 max*
Fe 0.4-1.0
Zn 1 max*
Ni 29-33
Mn 1 max
52 18 45
CuNi 70/30 UNS C71640 ASTM B111, B543, B552 Cu rem
Pb .05 max*
Fe 1.7-2.3
Zn 1 max*
Ni 29-32
Mn 1.5-2.5
63 25






Packing & Shipping

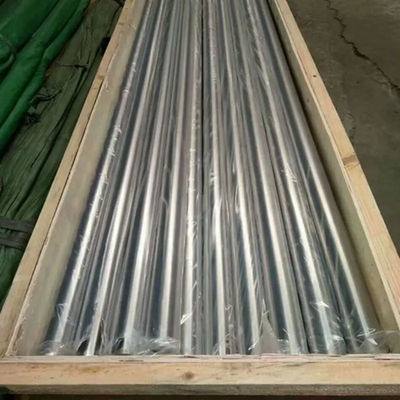

Inconel 800HT B407 Butt Welding Copper Nickel Tube 100mm 80mm 1'' 3'' 2'' 1/2 0
Product Show

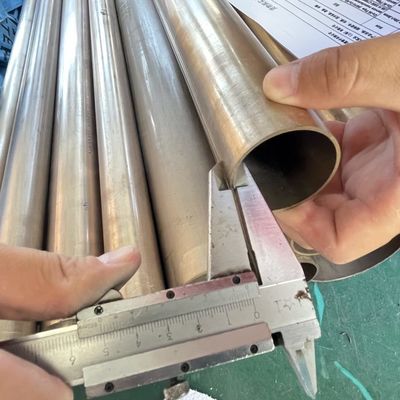

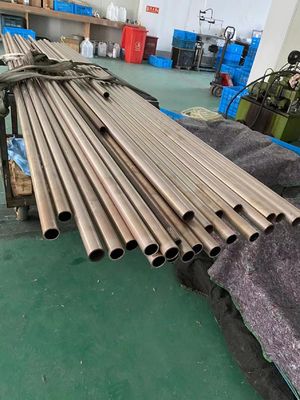

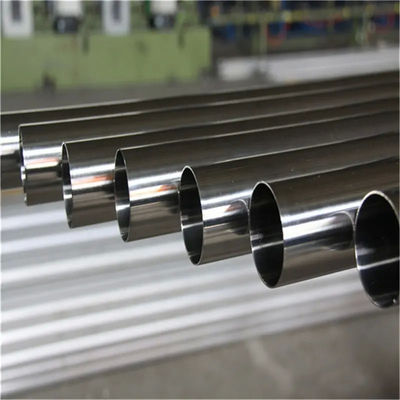

Inconel 800HT B407 Butt Welding Copper Nickel Tube 100mm 80mm 1'' 3'' 2'' 1/2 1
FAQ

  • Q:What is Copper Nickel Pipe?
    A:Copper Nickel Pipe is a pipe made of copper and nickel, which is often used for plumbing, heating and cooling systems.
  • Q:What is the brand name of Copper Nickel Pipe?
    A:The brand name of Copper Nickel Pipe is TOBO.
  • Q:Where is Copper Nickel Pipe from?
    A:Copper Nickel Pipe is from Shanghai.
  • Q:What is the minimum order quantity of Copper Nickel Pipe?
    A:The minimum order quantity of Copper Nickel Pipe is 1.
  • Q:What is the price of Copper Nickel Pipe?
    A:The price of Copper Nickel Pipe is 9.
  • Q:How long does it take to deliver Copper Nickel Pipe?
    A:It takes 15 workdays to deliver Copper Nickel Pipe.
  • Q:What are the payment terms for Copper Nickel Pipe?
    A:The payment terms for Copper Nickel Pipe are T/T, L/C, Western Union.
