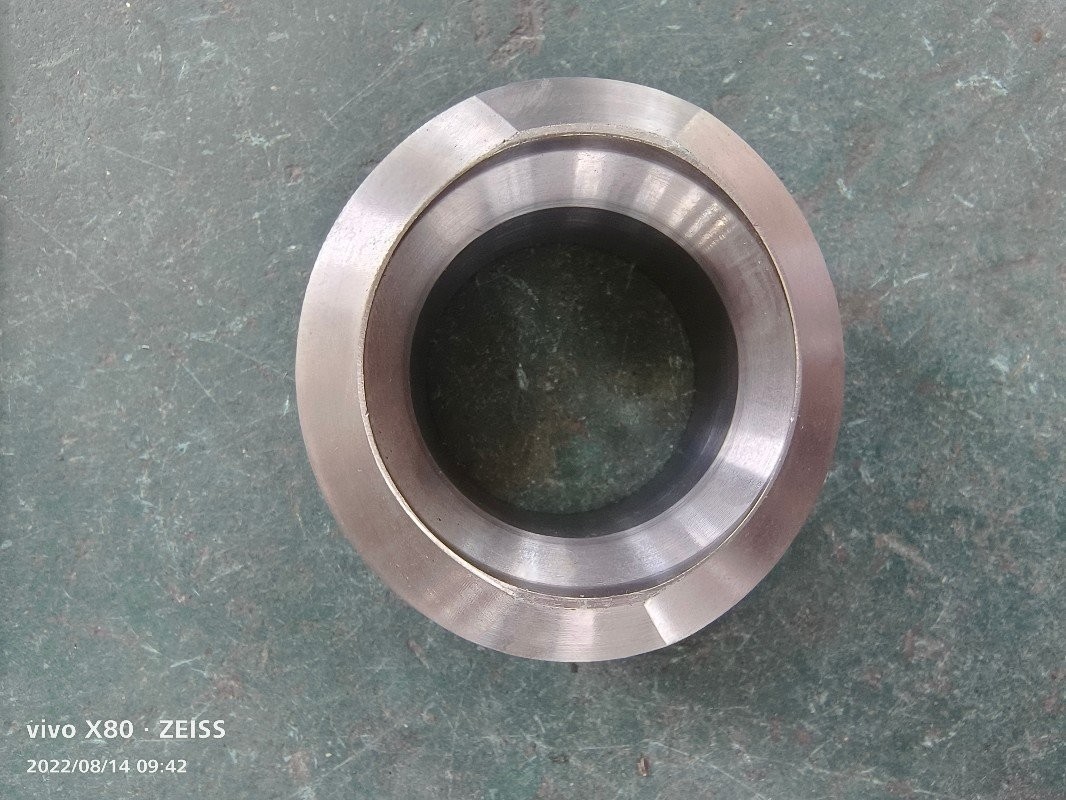

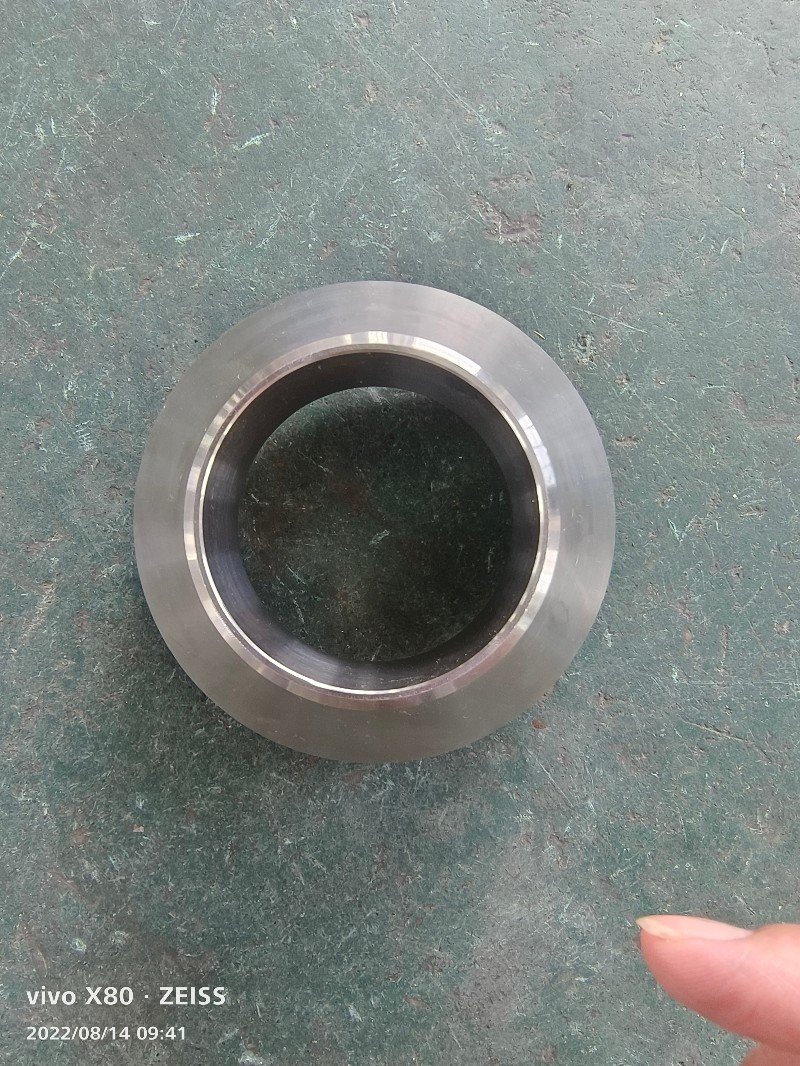

Copper Nickel Fittings 2"X 1" STD Weldolet Fitting UNS C70600 ASTM B151
| Place of Origin | China |
|---|---|
| Brand Name | TOBO |
| Certification | SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED |
| Model Number | Sockolet |
| Minimum Order Quantity | 1pcs |
| Price | Depending on quantity |
| Packaging Details | Standard export sea-worthy packing |
| Delivery Time | 15-30 working days depending on quantity |
| Payment Terms | T/T, L/C, Western Union |
| Supply Ability | 3,0000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Socket Welding Elbow | Material | UNS C70600 |
|---|---|---|---|
| Size | 2" X1 " Or Customized | Class | 3000 |
| Brand | TOBO | Packing | Standard Packing |
Product Description
Copper Nickel Fittings 2"X 1" STD Weldolet Fitting UNS C70600 ASTM B151
Copper nickel 70/30 Sockolets supplier, CuNi10Fe1Mn Sockolets, Cuni 90/10 Sockolets stockist, CuNi30Fe1Mn Sockolets. Copper Nickel Socket welding Sockolets exporter, Cuni Sockolets, CuNi Sockolets brazing end, Copper Nickel Sockolets supplier, Cuni Sockolets manufacturer in China.
COPPER NICKEL SOCKOLETS WEIGHT & DIMENSIONS CHART
| Outside diameter of branch pipe | Outside diameter of header | Theoretical | |||||
| ØD | ØN | ØB | H | C | weight | ||
| nominal inch |
actual mm |
nominal inch |
actual mm |
mm | mm | mm | Kg/piece |
| 0.5 | 16 | 0.75 to 1.5 | 25 to 44.5 | 12.0 | 25.4 | 10 | 0.10 |
| 0.5 | 16 | 2 to 36 | 57 to 914 | 12.0 | 23.8 | 10 | 0.10 |
| 0.75 | 25 | 1 to 1.5 | 30 to 44.5 | 21.0 | 26.9 | 13 | 0.13 |
| 0.75 | 25 | 2 to 36 | 57 to 914 | 21.0 | 25.4 | 13 | 0.13 |
| 1 | 30 | 1.25 to 1.5 | 38 to 44.5 | 25.0 | 33.3 | 13 | 0.22 |
| 1 | 30 | 2 to 36 | 57 to 914 | 25.0 | 28.6 | 13 | 0.22 |
| 1.25 | 38 | 2 to 36 | 57 to 914 | 33.0 | 33.3 | 13 | 0.35 |
| 1.25 | 38 | 2 to 36 | 57 to 914 | 33.0 | 33.3 | 13 | 0.35 |
| 1.5 | 44.5 | 2 to 36 | 57 to 914 | 39.5 | 30.2 | 13 | 0.50 |
| 1.5 | 44.5 | 2 to 36 | 57 to 914 | 39.5 | 30.2 | 13 | 0.50 |
| 2 | 57 | 2.5 to 36 | 76.1 to 914 | 52.0 | 38.1 | 16 | 0.90 |
| 2 | 57 | 2.5 to 36 | 76.1 to 914 | 52.0 | 38.1 | 16 | 0.9 |
Manufacturing Standard of Copper Nickel Socket Weld Fittings
| DIMENSIONAL STANDARD | DIN 86103 BS3799 EEMUA 146 MSS-SP95 / MSS-SP97 |
BS3799 | |
| EUROPE | MATERIAL STANDARD |
2.0872 / 2.1972 UNS7060X CW352H CN102 NES779 / DEF STAN 02-879 |
2.0882 CW354H CN107 NES780 / DEF STAN 02-780 |
| DELIVERY CONDITION |
.10 / .11 / O / O60 / M | .10 / O / O60 / M / R370 | |
| DIMENSIONAL STANDARD | ANSI B16.11 | ANSI B16.11 | |
| UNITED STATES | MATERIAL STANDARD |
UNS C70600 / C70610 / C70620 ASTMB151 / MILC15726F / MILC24679SH |
UNS C71500 / C71520 ASTMB151 / MILC15726F / MILC24679SH |
| DELIVERY CONDITION |
O / O60 | O / O60 |
Q1: Are you trading company or manufacturer ?
A: We are factory.
Q2: How long is the delivery ?
A: 15-30 working days
Q3: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
If you want to get more information of the products, send me e-mail or by skype, whatsapp etc.
.
If any questions,you can call me mobile phone at any times:0086-15710108231
| DIMENSIONAL STANDARD | DIN 86103 BS3799 EEMUA 146 MSS-SP95 / MSS-SP97 |
BS3799 | |
| EUROPE | MATERIAL STANDARD |
2.0872 / 2.1972 UNS7060X CW352H CN102 NES779 / DEF STAN 02-879 |
2.0882 CW354H CN107 NES780 / DEF STAN 02-780 |
| DELIVERY CONDITION |
.10 / .11 / O / O60 / M | .10 / O / O60 / M / R370 | |
| DIMENSIONAL STANDARD | ANSI B16.11 | ANSI B16.11 | |
| UNITED STATES | MATERIAL STANDARD |
UNS C70600 / C70610 / C70620 ASTMB151 / MILC15726F / MILC24679SH |
UNS C71500 / C71520 ASTMB151 / MILC15726F / MILC24679SH |
| DELIVERY CONDITION |
O / O60 | O / O60 |
