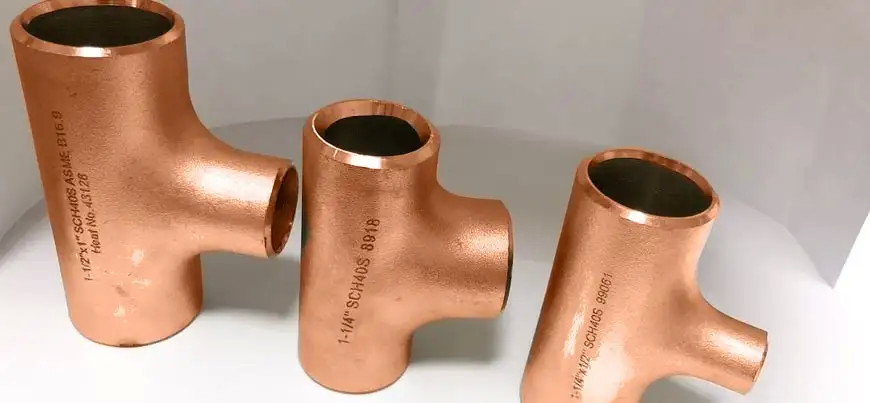

Copper Nickel Cu-Ni 70/30 Uns C71500 Steel fittings

  • Copper Nickel Cu-Ni 70/30 Uns C71500 Steel fittings
  • Copper Nickel Cu-Ni 70/30 Uns C71500 Steel fittings
Place of Origin CHINA
Brand Name TOBO
Certification ISO/PED/TUV/SGS/LR/BV
Minimum Order Quantity 1
Price >= 1 pieces $50.00
Packaging Details PACKAGES/WOODENCASES
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000 Ton/Tons per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Place Of Origin China Connection Welding
Head Code Square Customized Support OEM, ODM, OBM
Size 1/2"-48" Packing Standard Seaworthy Package
Technics Forged Application Industrial
Leave a Message
Product Description

Copper Nickel Cu-Ni 70/30 Uns C71500 Steel fittings

Overview

Essential details
Warranty:
3 years
Customized support:
OEM, ODM, OBM
Place of Origin:
China
Brand Name:
TOBO
Model Number:
KM-01
Technics:
Forged
Connection:
Welding
Shape:
Equal
Head Code:
Square
Material:
Uns C71500
Standard or Nonstandard:
EN DIN ANSI JIS GOST
Size:
1/2"-48"
Application:
Industrial
Product name:
FORGED STEEL FLANGE
Certificate:
ISO9001
Packing:
Standard Seaworthy Package
Surface treatment:
Antirust Oil Painting
Color:
White
Pressure:
Class150/300/600/9001500/2500

Copper Nickel 70/30 ASTM B122 Buttweld Fittings Equivalent Grades

STANDARD UNS WNR.
Copper Nickel 70/30 C71500 2.0882



Chemical Composition of Copper Nickel 70/30 Seamless and Welded Pipe Fittings

Grade Cu Mn Pb Ni Fe Zn
Cu-Ni 70-30 65.0 min 1 max .05 max 29-33 0.4-1.0 1 max

Mechanical Properties Of ASME SB122 Copper Nickel 70/30 Buttweld Pipe Fittings

Properties Metric Imperial
Tensile strength, ultimate 372-517 MPa 54000-75000 psi
Tensile strength, yield (depending on temper) 88.0-483 MPa 12800-70100 psi
Elongation at break (in 381 mm) 45.0% 45.0%
Charpy impact 107 J 78.9 ft-lb
Machinability (UNS C36000 (free-cutting brass) = 100%) 20% 20%
Shear modulus 57.0 GPa 8270 ksi
Poisson's ratio 0.34 0.34
Elastic modulus 150 GPa 21800 ksi

Physical Properties of ASTM B171 Cu-Ni 70/30 Pipe Fittings

Properties Metric Imperial
Density 8.94 g/cm3 0.323 lb/in3
Melting point 2140°F 1171°C



Copper Nickel Cu-Ni 70/30 Uns C71500 Steel fittings
