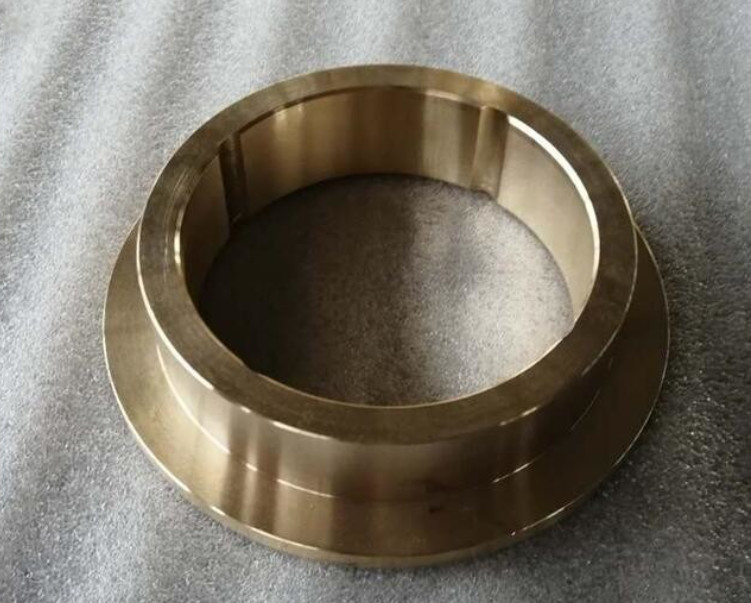

MSS SP Copper Nickel Stub End Fittings 43 3" 10S UNS C71500

  • MSS SP Copper Nickel Stub End Fittings 43 3" 10S UNS C71500
  • MSS SP Copper Nickel Stub End Fittings 43 3" 10S UNS C71500
  • MSS SP Copper Nickel Stub End Fittings 43 3" 10S UNS C71500
Place of Origin China
Brand Name TOBO
Certification SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number MSS - SP 43
Minimum Order Quantity 1pcs
Price Depending on quantity
Packaging Details Standard export sea-worthy packing
Delivery Time 15-30 working days depending on quantity
Payment Terms T/T, L/C, Western Union
Supply Ability 3,0000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Stub End Material UNS C71500
Size 3" Or Customized Thickness 10S Or Customized
Brand TOBO Packing Standard Packing
Highlight

Copper Nickel Stub End Fittings

,

MSS SP Stub End Fittings

,

C71500 mss stub end
Leave a Message
Product Description

Copper Nickel Stub End MSS - SP 43 3" 10S UNS C71500 Butt Welding Fittings



Type Copper Nickel Stub End MSS - SP 43 3" 10S UNS C71500 Butt Welding Fittings
Standard MSS SP43
Size 1/2’’~16’(Seamless);16’’~36’’(Welded)
Wall thickness 2.0-19.0mm
Manufacturing process Push, Press, Forge, Cast, etc.
Material Carbon steel, stainless steel, alloy steel, duplex stainless, nickel alloy steel
Carbon steel ASTM A234 WPB, WPC;
Stainless steel

304/SUS304/UNS S30400/1.4301
304L/UNS S30403/1.4306;
304H/UNS S30409/1.4948;
309S/UNS S30908/1.4833
309H/UNS S30909;
310S/UNS S31008/1.4845;
310H/UNS S31009;
316/UNS S31600/1.4401;
316Ti/UNS S31635/1.4571;
316H/UNS S31609/1.4436;
316L/UNS S31603/1.4404;
316LN/UNS S31653;
317/UNS S31700;
317L/UNS S31703/1.4438;
321/UNS S32100/1.4541;
321H/UNS S32109;
347/UNS S34700/1.4550;
347H/UNS S34709/1.4912;
348/UNS S34800;
Alloy steel

ASTM A234 WP5/WP9/WP11/WP12/WP22/WP91;
ASTM A860 WPHY42/WPHY52/WPHY60/WPHY65;
ASTM A420 WPL3/WPL6/WPL9;
Duplex steel

ASTM A182 F51/S31803/1.4462;
ASTM A182 F53/S2507/S32750/1.4401;
ASTM A182 F55/S32760/1.4501/Zeron 100;
2205/F60/S32205;
ASTM A182 F44/S31254/254SMO/1.4547;
17-4PH/S17400/1.4542/SUS630/AISI630;
F904L/NO8904/1.4539;
725LN/310MoLN/S31050/1.4466
253MA/S30815/1.4835;
Nickel alloy steel

Alloy 200/Nickel 200/NO2200/2.4066/ASTM B366 WPN;
Alloy 201/Nickel 201/NO2201/2.4068/ASTM B366 WPNL;
Alloy 400/Monel 400/NO4400/NS111/2.4360/ASTM B366 WPNC;
Alloy K-500/Monel K-500/NO5500/2.475;
Alloy 600/Inconel 600/NO6600/NS333/2.4816;
Alloy 601/Inconel 601/NO6001/2.4851;
Alloy 625/Inconel 625/NO6625/NS336/2.4856;
Alloy 718/Inconel 718/NO7718/GH169/GH4169/2.4668;
Alloy 800/Incoloy 800/NO8800/1.4876;
Alloy 800H/Incoloy 800H/NO8810/1.4958;
Alloy 800HT/Incoloy 800HT/NO8811/1.4959;
Alloy 825/Incoloy 825/NO8825/2.4858/NS142;
Alloy 925/Incoloy 925/NO9925;
Hastelloy C/Alloy C/NO6003/2.4869/NS333;
Alloy C-276/Hastelloy C-276/N10276/2.4819;
Alloy C-4/Hastelloy C-4/NO6455/NS335/2.4610;
Alloy C-22/Hastelloy C-22/NO6022/2.4602;
Alloy C-2000/Hastelloy C-2000/NO6200/2.4675;
Alloy B/Hastelloy B/NS321/N10001;
Alloy B-2/Hastelloy B-2/N10665/NS322/2.4617;
Alloy B-3/Hastelloy B-3/N10675/2.4600;
Alloy X/Hastelloy X/NO6002/2.4665;
Alloy G-30/Hastelloy G-30/NO6030/2.4603;
Alloy X-750/Inconel X-750/NO7750/GH145/2.4669;
Alloy 20/Carpenter 20Cb3/NO8020/NS312/2.4660;
Alloy 31/NO8031/1.4562;
Alloy 901/NO9901/1.4898;
Incoloy 25-6Mo/NO8926/1.4529/Incoloy 926/Alloy 926;
Inconel 783/UNS R30783;
NAS 254NM/NO8367;
Monel 30C
Nimonic 80A/Nickel Alloy 80a/UNS N07080/NA20/2.4631/2.4952
Nimonic 263/NO7263
Nimonic 90/UNS NO7090;
Incoloy 907/GH907;
Nitronic 60/Alloy 218/UNS S21800
Package Wooden cases, pallets, nylon bags or according to the customers' requirements
MOQ 1pcs
Delivery time 10-100 days depending on quantity
Payment terms T/T or Western Union or LC
Shipment FOB Tianjin/Shanghai, CFR, CIF, etc
Application Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc
Remarks Other materials and drawings are available.



DEFINITION Stub ends are mechanical joints that comprises of two components: The Stub End, which essentially a short length of pipe, which has one end that is flared outwards and the other end prepared to be welded to pipe of the same Nominal Pipe Size (NPS), material and of a similar wall thickness
What are the different types of stub ends?
Stub ends are usually manufactured in two ways, Type A and Type B. They are available in two standard length, long (ANSI) or short pattern (MSS). Schedule 5s and 10s stub end are usually offered in short lengths, and long lengths are available on special order.
What is a type B stub end used for?
Type “B”: this type of stub ends is suited for standard slip-on flanges acting as lap-joint flanges. The lap thickness of type B stub ends is >= the minimum WT of the connecting pipe.





Q1: Are you trading company or manufacturer ?



A: We are factory.

Q2: How long is the delivery ?

A: 15-30 working days




Q3: Do you provide samples ? is it free or extra ?


A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

If you want to get more information of the products, send me e-mail or by skype, whatsapp etc.
.

If any questions,you can call me mobile phone at any times:0086-15710108231
