2.5mm 2"X1" Copper Nickel Fittings UNS C70600 Concentric Nipple
| Place of Origin | China |
|---|---|
| Brand Name | TOBO |
| Certification | SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED |
| Model Number | MSS-SP-95 |
| Minimum Order Quantity | 1pcs |
| Price | Depending on quantity |
| Packaging Details | Standard export sea-worthy packing |
| Delivery Time | 15-30 working days depending on quantity |
| Payment Terms | T/T, L/C, Western Union |
| Supply Ability | 3,0000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Swaged Concentric | Material | UNS C70600 |
|---|---|---|---|
| Size | 2"X 1" Or Customized | Thickness | 2.5MM |
| Brand | TOBO | Packing | Standard Packing |
| Highlight | TOBO C70600 2"X1" Copper Nickel Fittings,C70600 TOBO 2"X1" Copper Nickel Fittings,TOBO 2"X1" C70600 Copper Nickel Fittings |
||
Product Description

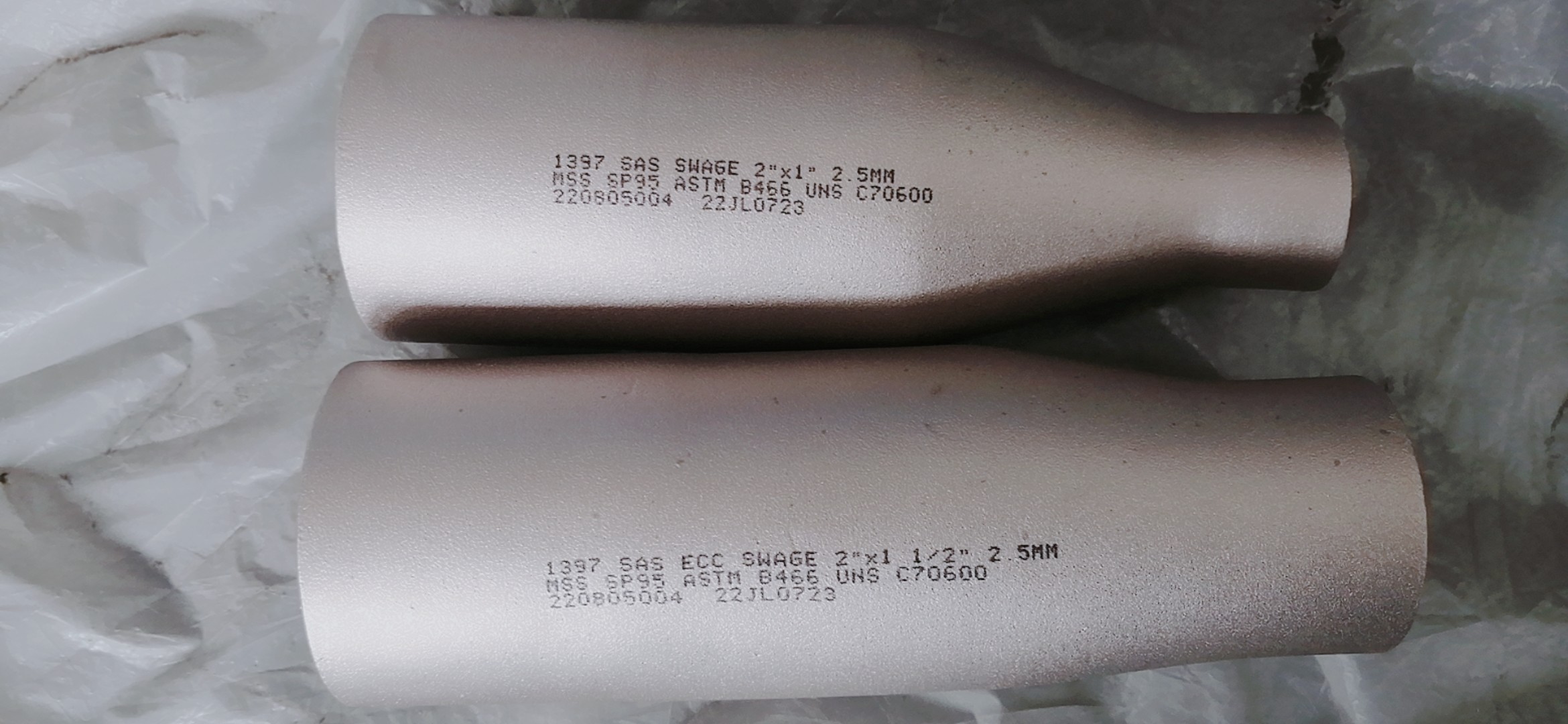

Copper Nickel Forged Pipe Fitting Swaged Concentric 2"X 1" 2.5MM UNS C70600
The rapid development of the marine industry has put forward higher and higher requirements for materials used in marine engineering, including copper, which is widely used in ships, some power plants and seawater desalination. Because of its long-term seawater erosion corrosion, if the corrosion resistance does not meet the use requirements, corrosion failure will occur, resulting in huge losses. Therefore, white copper has attracted increasing attention due to its good seawater corrosion resistance (especially good erosion corrosion performance) and corrosion fatigue resistance, excellent cold and hot working process performance, and high tensile strength, yield strength and other properties.
Dimensional Tolerance of Swaged Nipple
|
Nominal Pipe Size (inch) |
Overall Length (mm) |
Outside diameter at end |
Wall Thickness (prior to threading or grooving) |
|
|---|---|---|---|---|
|
Square Cut Ends (mm) |
Other End Connection (mm) |
|||
| 1/8” to 3/8” | ± 1.5 | + 0.40 – 0.80 |
± 0.80 |
Not less than 87.5% of nominal wall thickness |
| 1/2” to 1-1/2” | ± 1.5 | + 0.40 – 0.80 |
+ 1.50 – 0.80 |
|
| 2” to 2-1/2” | ± 3.0 | ± 0.80 | + 1.50 – 0.80 |
|
| 3” to 4” | ± 3.0 | ± 0.80 |
± 1.50 |
|
Swage Nipples MSS-SP-95 Design Specification – Dimensional Standard for Stainless Steel, Carbon Steel, Alloy Steel Swage Nipples
Swage Nipples BS3799 Design Specification – Dimensional Standard for Stainless Steel, Carbon Steel, Alloy Steel Swage Nipples
Swage Nipple Material
ASME B16.11 Stainless Steel Forged Threaded Swage Nipple :
ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L
Duplex & Super Duplex Steel ASME B16.11 Forged Threaded Swage Nipple :
ASTM A 182 – F 51, F53, F55 S 31803, S 32205, S 32550, S 32750, S 32760, S 32950.
Carbon Steel ASME B16.11 Forged Threaded Swage Nipple:
ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C
ASME B16.11 Alloy Steel Forged Threaded Swage Nipple:
ASTM / ASME A 182, ASTM / ASME A 335, ASTM / ASME A 234 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91
ASME B16.11 Copper Alloy Steel Forged Threaded Swage Nipple: ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)
Nickel Alloy Forged Threaded ASME B16.11 Swage Nipple:
ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)
Q1: Are you trading company or manufacturer ?
A: We are factory.
Q2: How long is the delivery ?
A: 15-30 working days
Q3: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
If you want to get more information of the products, send me e-mail or by skype, whatsapp etc.
.
If any questions,you can call me mobile phone at any times:0086-15710108231
