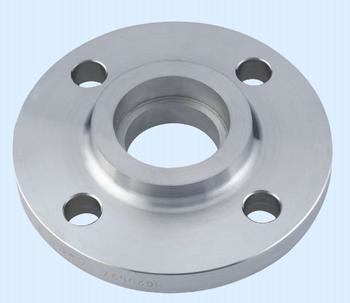

3/4'' Copper Nickel Flange C70600 DN15-DN1500 Socket Weld Flange Welding
| Place of Origin | CHINA |
|---|---|
| Brand Name | TOBO |
| Certification | SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED |
| Minimum Order Quantity | 1 |
| Price | depending on quantity |
| Packaging Details | standard export sea-worthy packing |
| Delivery Time | 15-30 working days depending on quantity |
| Supply Ability | 30000 per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Support Custom Spot Copper-Nickel Flange A Variety Of Specifications | Product Type | Socket Welded Flange |
|---|---|---|---|
| Size | 3/4'' | DN15-DN1500 | 15-1500 |
| Material | C70600 | Type | WCB Carbon Steel |
| Sealing Surface Form | RF MFM TG RJ | Scope Of Application | Petroleum, Chemical Industry, Shipbuilding, Etc |
| Highlight | 3/4'' Copper Nickel Flange,Copper Nickel Flange C70600,DN15 socket weld flange welding |
||
Product Description
Support Custom Spot Copper-Nickel Flange A Variety Of Specifications
| Product Name | Support Custom Spot Copper-Nickel Flange A Variety Of Specifications |
| Standard | |
| Size | 3/4 |
| Pressure Rate | 150lb to 1500lb |
| Manufacturing process | Push, Press, Forge, Cast, etc. |
| Material | WCB carbon steel |
|
Allloy steel flange
|
ASTM A182 F5; F11;F22;F91;F51 ASTM A350 LF1; LF2; A350 LF3 ;LF4;LF6;LF8 |
|
Stainless Steel flange
|
ASTM A182 F304/304H/304L ASTM A182 F316/316H/316L ASTM A182 F321/321H ASTM A182 F347/347H |
|
Nickel Alloys Flanges
|
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276 |
| Copper Alloys Flange | Copper, Brass & Gunmetal |
| Manufacture Standard |
ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673 B.S : BS4504 , BS4504, BS1560, BS10 |
| Package | Wooden cases, pallets, nylon bags or according to the customers' requirements |
| MOQ | 1pcs |
| Delivery time | 10-100 days depending on quantity |
| Payment terms | T/T or Western Union or LC |
| Shipment | FCA Tianjin/Shanghai, CFR, CIF, etc |
| Application | Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc |
| Remarks | Other materials and drawings are available. |
A socket weld flange is a pipe connector that contains a socket and is welded to a socket. Including the socket in the socket weld flange provides a stronger connection than similar slide-in flanges. Socket weld flanges are designed for small high pressure pipes. This type of flange is very popular in chemical plants and requires all flange connections to have smooth flow connections. The advantage of a flange connection is that the pipe can be easily removed from the flange and easily reassembled.
For slide-in flanges, piping must be chamfered so that welding can be performed on the inside and outside of the flanges. The internal welds need to be polished to form smooth flowing connections. Socket welding flanges allow liquids to flow smoothly through the connection without crushing. The socket is designed to have an inner lip as wide as the width of the pipe into which the flange is to be inserted. In this way, the tube can be precisely aligned with the lip of the socket in the flange as the unit is assembled, creating a smooth transition in the flange.
