8'' SCH80 Copper Water Pipe End Cap

  • 8'' SCH80 Copper Water Pipe End Cap
  • 8'' SCH80 Copper Water Pipe End Cap
  • 8'' SCH80 Copper Water Pipe End Cap
  • 8'' SCH80 Copper Water Pipe End Cap
  • 8'' SCH80 Copper Water Pipe End Cap
Place of Origin China
Brand Name METAL
Certification SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number Butt Welding Fittings
Minimum Order Quantity 1pcs
Price Depending on quantity
Packaging Details Standard export sea-worthy packing
Delivery Time 25-30 days depending on quantity
Payment Terms T/T, L/C, Western Union
Supply Ability 3,0000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Copper Cap Material UNS 70600
Size 1"-36" Thickness 2.5MM-19MM
Standard EEMUA 146 SEC.2 Place Of Origin China
Sample Avaliable Delivery Time 20-35 Days
Highlight

SCH80 copper water pipe end cap

,

8'' copper water pipe end cap

,

2.5mm cap copper water pipe
Leave a Message
Product Description

 Alloy Pipe Fittings 8'' SCH80 CAP Copper Nickel 20 Bar Caps For Copper Pipe

Copper Nickel End Cap



The table here shows copper nickel end caps’ dimensions & sizes according to Europe standards like EEMUA, DIN & Similar. Furthermore it has details for both seamless and seam welded copper nickel end cap variants. It also lists Wall Thickness (WT) and Theoretical Weight for the pipes which can withstand pressure of 10 bar, 14 bar, 16 bar, 20 bar respectively.

At Cunimet Alloy International, we manufacture and export cupronickel end caps strictly following the below mentioned Europe Standards, other international standards or as per the specifications mentioned by the client.

CuNi End Cap - DIN 86088, similar

10 BAR – Material: CuNi10Fe1Mn

OD WT HEIGHT THEORETICAL WEIGHT
Nominal Actual e h1 h4
inch mm mm mm mm kg/piece

  SEAMLESS
1 30 1,5 14 5 0,07
1 1/4 38 1,5 14 605 0,1
1 1/2 44,5 1,5 14 8 0,12
2 57 1,5 18 10 0,18
2 1/2 76,1 2 18 14 0,31
3 88,9 2 20 16 0,39
4 108 2,5 20 20 0,75
5 133 2,5 20 24 0,95
6 159 2,5 20 29 1,35
7 193,7 2,5 20 36 1,95
8 219,1 3 20 41 2,6
10 267 3 20 50 3,85
12 323,9 4 20 61 6,6
14 368 4 20 69 8,8
16 419,1 4 20 79 12,2
18 457,2 4 20 87 12,55
20 508 4,5 20 96 18,8
24 610 5 20 115 26,7

14 BAR – Material: CuNi10Fe1Mn

OD WT HEIGHT THEORETICAL WEIGHT
Nominal Actual e h1 h4
inch mm mm mm mm kg/piece

  SEAMLESS
1 30 1,5 14 5 0,07
1 1/4 38 1,5 14 605 0,1
1 1/2 44,5 1,5 14 8 0,12
2 57 1,5 18 10 0,18
2 1/2 76,1 2 18 14 0,31
3 88,9 2,5 20 20 0,75
4 108 2,5 20 20 0,75
5 133 3 20 24 1,2
6 159 3 20 29 1,6
7 193,7 3 20 36 2,4
8 219,1 3,5 20 41 3,1
10 267 4 20 50 4,85
12 323,9 5 20 61 8,2
14 368 5,5 20 69 12,6
16 419,1 6 25 79 17,4
18 457,2 6 25 87 17,9
20 508 6,5 25 96 26,35
24 610 8 35 115 49,5

CuNi End Cap - EEUMA 146 Standards

16 BAR – Material: CuNi10Fe1Mn, CuNi30Fe1Mn

OD WT HEIGHT THEORETICAL WEIGHT
Nominal Actual e h1 + h4
inch mm mm mm kg/piece

  SEAMLESS
1 1/2 44,5 2,5 19,6 0,13
2 57 2,5 22 0,19
2 1/2 76,1 2,5 25,7 0,31
3 88,9 2,5 28,2 0,4
4 108 3 31,7 0,75
6 159 3 41 1,5
8 219,1 4 55 2,75
10 267 4,5 69 4,9
12 323,9 5,5 80 9,17
14 368 6,5 93 14,05
16 419,1 7 102 18,6
18 457,2 8 119 22,75
20 508 8,5 129 31,7
24 610 10,5 148 56,16
28 711 12 176 85,55
32 813 13,5 200 125,4
36 914 15,5 221 175,4



20 BAR – Material: CuNi10Fe1Mn, CuNi30Fe1Mn

OD WT HEIGHT THEORETICAL WEIGHT
Nominal Actual e h1 + h4
inch mm mm mm kg/piece

  SEAMLESS
1 1/2 44,5 2,5 19,6 0,13
2 57 2,5 22 0,19
2 1/2 76,1 2,5 25,7 0,31
3 88,9 2,5 28,2 0,4
4 108 3 31,7 0,75
6 159 3,5 44 17,75
8 219,1 4,5 60 3,1
10 267 5,5 69 5,96
12 323,9 7 85 11,68
14 368 8 103 17,3
16 419,1 9 112 23,9
18 457,2 9,5 119 27
20 508 11 139 41
24 610 13 163 68,3
28 711 15 191 106,9
32 813 17 210 157,9
36 914 19 231 215

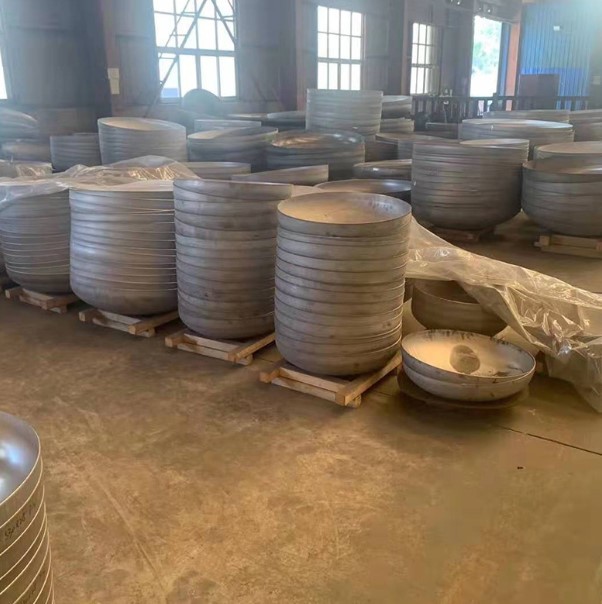

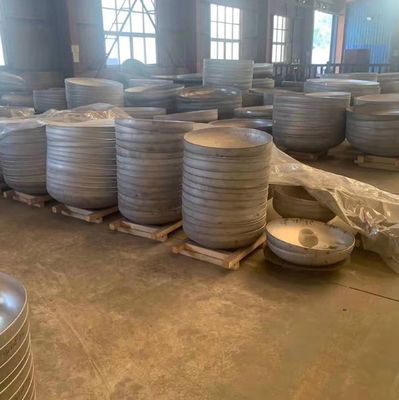

8'' SCH80 Copper Water Pipe End Cap 0

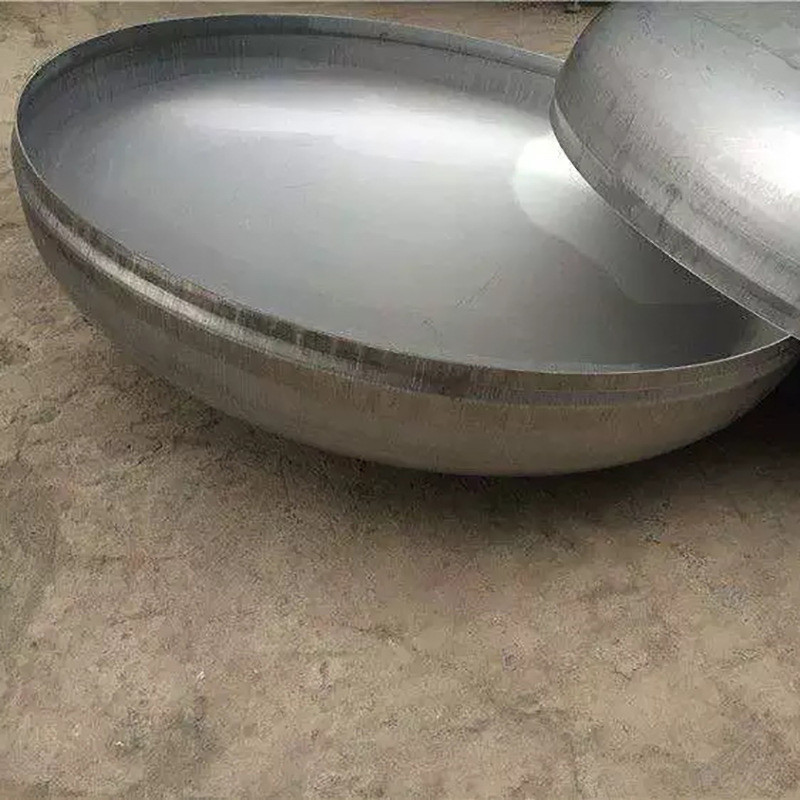

8'' SCH80 Copper Water Pipe End Cap 1

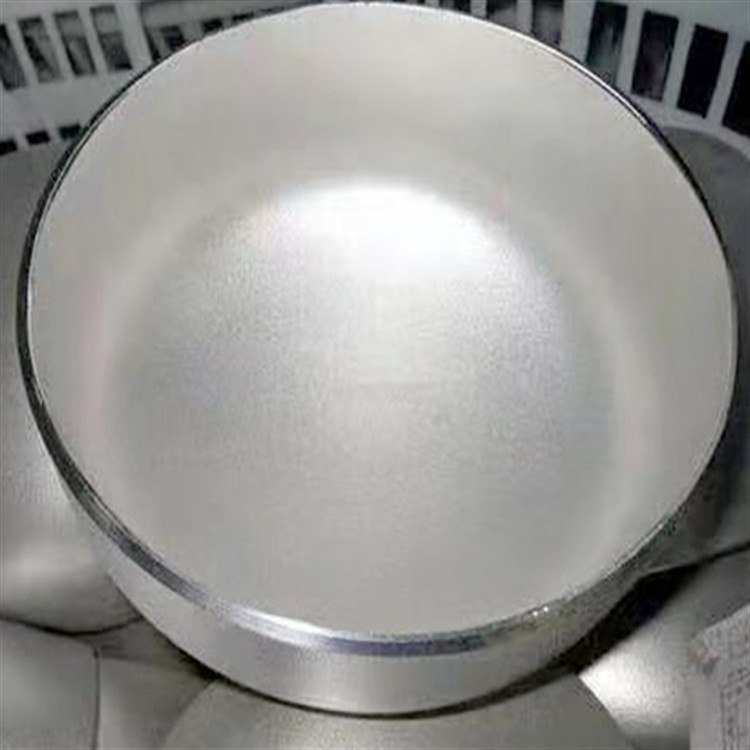

8'' SCH80 Copper Water Pipe End Cap 2

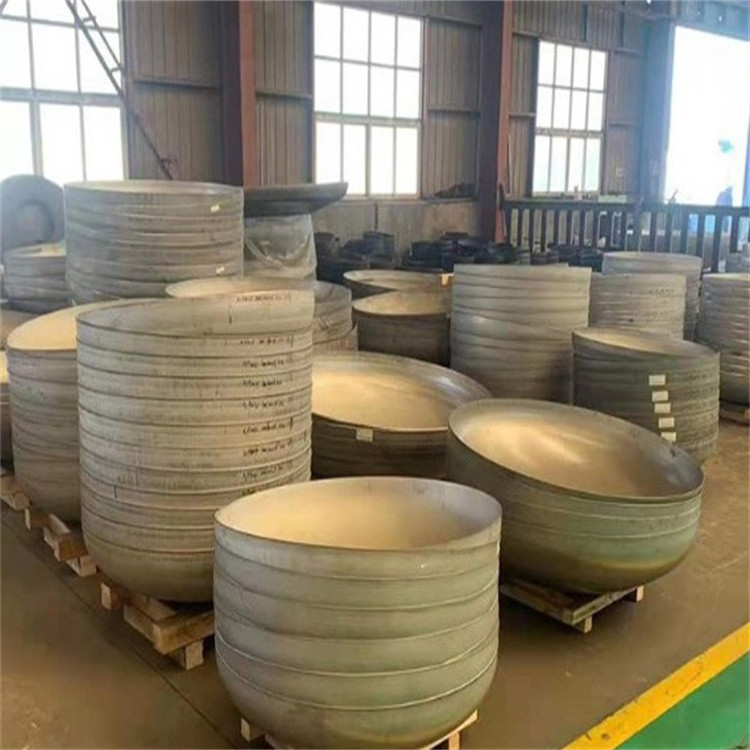

8'' SCH80 Copper Water Pipe End Cap 3

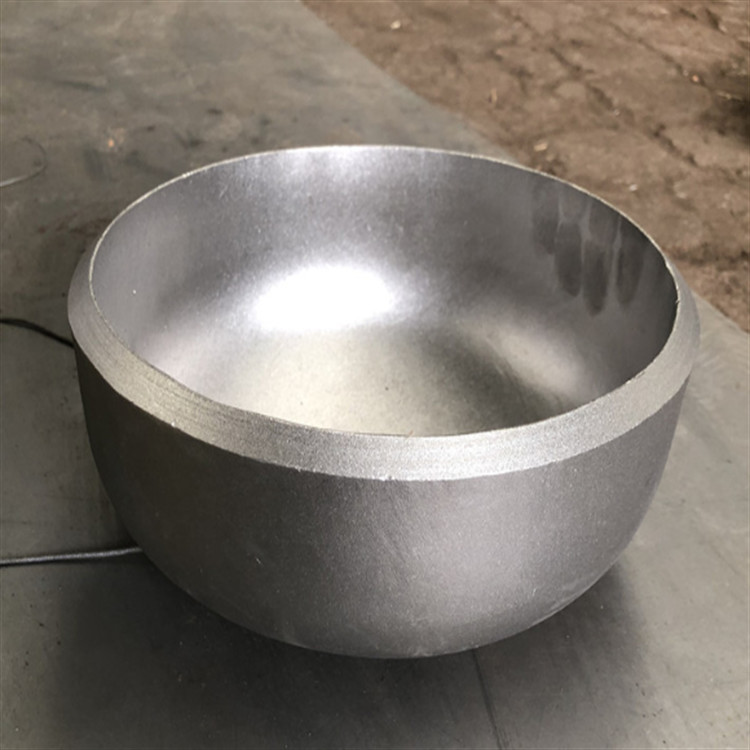

8'' SCH80 Copper Water Pipe End Cap 4
