Titanium 1 - 24" Seamless Alloy Steel Pipe CUNI 9010 Seamless Pipe

  • Titanium 1 - 24" Seamless Alloy Steel Pipe CUNI 9010 Seamless Pipe
  • Titanium 1 - 24" Seamless Alloy Steel Pipe CUNI 9010 Seamless Pipe
Place of Origin China
Brand Name TOBO
Certification API/ SGS
Model Number 90/10
Minimum Order Quantity 10 meter
Price Negotiable according to quantity
Packaging Details Standard seaworthy export package or as required
Delivery Time 7-45 workdays
Payment Terms L/C, T/T, Western Union
Supply Ability 300000 tons per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Grade 71500 Application Air Condition Or Refrigerator,Oil Cooler Pipe,Water Tube,heat Exchanger,air-conditioner Ect.
Type Steel Pipe Alloy Or Not Is Alloy
Length Required Shape Round
Price Term CIF CFR FOB Ex-Work Package Standard Seaworthy Export Package Or As Required
Wall Thickness Customized Specification Customized
Highlight

24” Seamless Alloy Steel Pipe

,

CUNI 9010 Seamless Alloy Steel Pipe

,

Titanium Seamless Alloy Steel Pipe
Leave a Message
Product Description
Titanium 1 - 24" Seamless Alloy Steel Pipe CUNI 9010 Seamless Pipe
Products Specification

CUNI Seamless Pipe Titanium 9010 1-24" Seamless Alloy Steel Pipe

Seamless Pipes
Seamless pipes are in accordance with EEMUA 234/chapter 1. They are manufactured from hot extruded shells followed by cold work and annealing.


Welded Pipes
Longitudinally welded pipes are in accordance with EEMUA 234/chapter 2. They are manufactured from hot rolled or cold rolled and annealed sheet or plates in accordance with BS 2870, BS2875, ASTM B171 or ASTM B402. Mechanical testing is carried out in accordance with the standards above. The pipes are supplied in “as welded” condition.



Copper Nickel has a Yield Strength of 103 MPa (15000 psi). The Rockwell B Hardness of Copper nickel is 69. The Machinability of Copper nickel is 20. Copper Nickel 90/10 offers superb resistance to brackish water, biofouling in seawater, erosion and stress corrosion. It has superb welding and fabrication properties. As far as hydrogen embrittlement goes, 90/10 copper nickel has a very high resistance to this. Cu-Ni 90/10 is very popular for use in industrial, architectural and marine applications, as it has high ductility and toughness. The Elastic Modulus of Copper nickel is 152 GPa (22000 ksi). The Thermal Conductivity of Copper nickel is 32.9 W/mK (0.0900 BTU in/hr.ft². °F). 90/10 copper nickel has superb antimicrobial properties, which means that it has the capability to kill a huge range of microbes, up to 99.9%, including the likes of Clostridium difficile, E. coli, MRSA and influenza A (H1N1), within a span of just a couple of hours.



1. Certification: ISO, ROHS, SGS

2. Available Packing: Plastic bags+Chipboard Cartons+Plywood pallet with Belt &Film.

Dimensions (mm)
Seamless Pipe
Size
Nominal (in)		 Size
Specified (mm)		 Specified Wall Thickness (mm) t Theoretical Weight/Metre (kg)
16bar 20 bar 16bar 20bar
1/2 16 2.0 2.0 0.78 0.78
3/4 25 2.0 2.0 1.29 1.29
1 30 2.5 2.5 1.93 1.93
1 1/4 38 2.5 2.5 2.49 2.49
1 1/2 44.5 2.5 2.5 2.94 2.94
2 57 2.5 2.5 3.82 3.82
2 1/2 76.1 2.5 2.5 5.15 5.15
3 88.9 2.5 2.5 6.05 6.05
4 108 3.0 3.0 8.82 8.82
6 159 3.0 3.5 13.10 15.24
8 219.1 4.0 4.5 24.10 27.04
10 267 4.5 5.5 33.10 40.27
12 323.9 5.5 7.0 49.05 62.10
14 368 6.5 8.0 65.80 80.64
16 419 7.0 9.0 80.75 103.32



Trade Name UNS Copper Nickel Industry Specifications Chemical Composition Min.Tensile
(KSI)		 Min.Yield
(KSI)		 Elongation
%
CuNi 90/10 UNS C70600
UNS C70620		 ASME SB111, SB171, SB359, SB395, SB466, SB467, SB543
ASTM B111, B122, B151, B171, B359, B395, B432, B466, B467, B543, B608 DIN 2.0872 MIL C-15726, T-15005, T-16420, T-22214 SAE J461, J463		 Cu 88.6 min
Pb .05 max*
Fe 1.8 max
Zn 1 max*
Ni 9-11 max
Mn 1.0 max		 38 15 30
CuNi 90/10 UNS C7060X EEMUA 144 90/10, 145 90/10, 14 90/1 Cu rem.
Pb .01 max
Fe 1.5-2.0
Zn 0.2 max
P 0.2 max
S 0.2 max
Ni 10-11
Mn 0.5-1.0		 40 15 30
CuNi 70/30 UNS C71500
UNS C71520		 ASME SB111, SB171, SB359, SB395, SB466, SB467, SB543
ASTM B111, B122, B151, B171, B359, B395, B432, B467, B543, B552, B608, F467, F468
DIN 2.0882
MIL C-15726, T-15005, T-16420, T-22214
SAE J461, J463		 Cu rem (65.0 min)
Pb .05 max*
Fe 0.4-1.0
Zn 1 max*
Ni 29-33
Mn 1 max		 52 18 45
CuNi 70/30 UNS C71640 ASTM B111, B543, B552 Cu rem
Pb .05 max*
Fe 1.7-2.3
Zn 1 max*
Ni 29-32
Mn 1.5-2.5		 63 25 –




Packing & Shipping

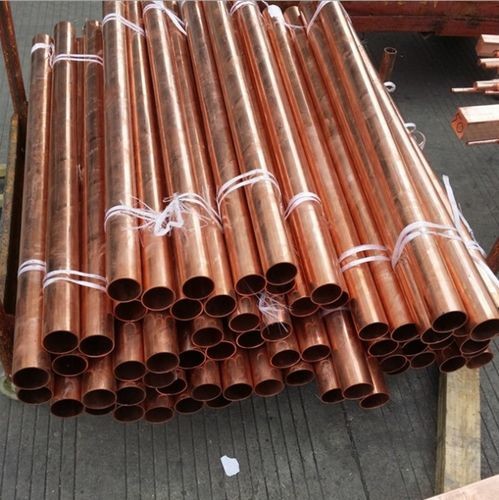

Titanium 1 - 24" Seamless Alloy Steel Pipe CUNI 9010 Seamless Pipe 0
Product Show

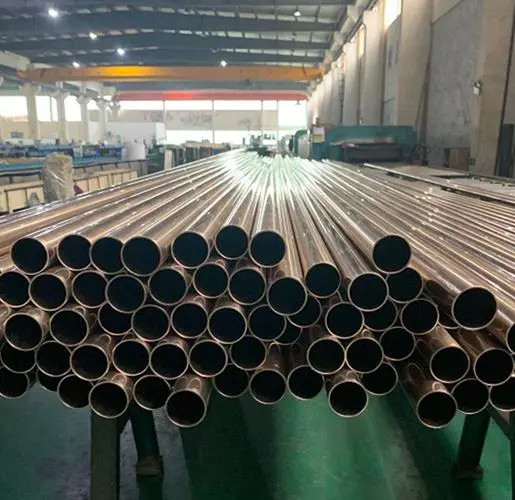

Titanium 1 - 24" Seamless Alloy Steel Pipe CUNI 9010 Seamless Pipe 1
FAQ
1.How do you let me trust you?
We are a Golden supplier in Alibaba who do business for more than 5 years. You can make an order by Alibaba to us directly.

2.How about your price?
High-quality products with a reasonable price suitable for your market.

3.How do you control your quality?
We request a QC inspection for each batch of goods. And we can provide you inspection report and mill certificate if you want..

4.Could you provide free samples?
For new customers, We can provide free samples for standard fasteners. But the clients will pay the express charges. For regular customers, We will send you free samples and pay express charges by ourselves.

5.How about your delivery time?
Generally speaking, All the goods have stock with little quantity, we can delivery them with one week. If the quantity is 1-2container, we can give you with 30-45days.

7.What is your payment term?
We can accept T/T,LC for general order. For new customer, we request 20%-50% T/T in advance, and balance payment should against B/L copy. For regular customer, we can provide delay payment after B/L date about 30-90 days.
