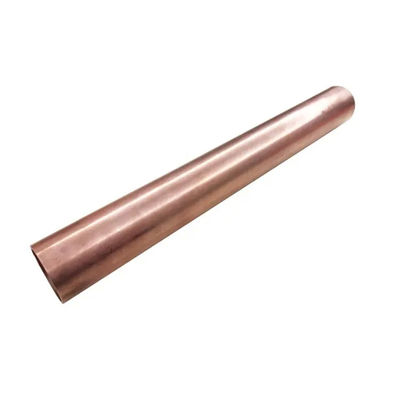

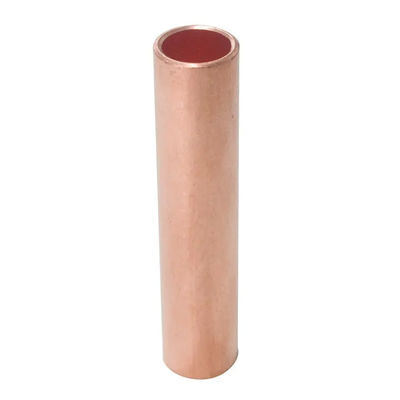

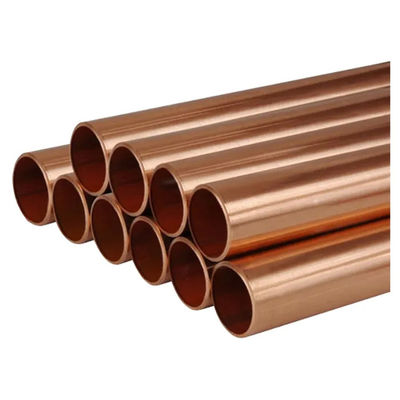

CUNI 90/10 Copper Nickel Pipe Seamless Round Pipe 2" 2.5mm 20 Bar
| Place of Origin | China |
|---|---|
| Brand Name | TOBO |
| Certification | SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED |
| Model Number | Copper Nickle Pipe |
| Minimum Order Quantity | 1pcs |
| Price | Depending on quantity |
| Packaging Details | Standard export sea-worthy packing |
| Delivery Time | 25-30 days depending on quantity |
| Payment Terms | T/T, L/C, Western Union |
| Supply Ability | 3,0000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Grade | 9010 | Application | Oil Cooler Pipe,Water Tube |
|---|---|---|---|
| Alloy Or Not | Is Alloy | Length | 1-12m,Required |
| Outside Diameter | 2mm~914mm | Product Name | Copper Nickel Tube |
Product Description
Copper Nickle Pipe CUNI 90-10 Seamless Round Pipe 2" 2.5MM 20 Bar
Product description
| Dimensions (mm) Seamless Pipe |
|||||
| Size Nominal (in) |
Size Specified (mm) |
Specified Wall Thickness (mm) t | Theoretical Weight/Metre (kg) | ||
| 16bar | 20 bar | 16bar | 20bar | ||
| 1/2 | 16 | 2.0 | 2.0 | 0.78 | 0.78 |
| 3/4 | 25 | 2.0 | 2.0 | 1.29 | 1.29 |
| 1 | 30 | 2.5 | 2.5 | 1.93 | 1.93 |
| 1 1/4 | 38 | 2.5 | 2.5 | 2.49 | 2.49 |
| 1 1/2 | 44.5 | 2.5 | 2.5 | 2.94 | 2.94 |
| 2 | 57 | 2.5 | 2.5 | 3.82 | 3.82 |
| 2 1/2 | 76.1 | 2.5 | 2.5 | 5.15 | 5.15 |
| 3 | 88.9 | 2.5 | 2.5 | 6.05 | 6.05 |
| 4 | 108 | 3.0 | 3.0 | 8.82 | 8.82 |
| 6 | 159 | 3.0 | 3.5 | 13.10 | 15.24 |
| 8 | 219.1 | 4.0 | 4.5 | 24.10 | 27.04 |
| 10 | 267 | 4.5 | 5.5 | 33.10 | 40.27 |
| 12 | 323.9 | 5.5 | 7.0 | 49.05 | 62.10 |
| 14 | 368 | 6.5 | 8.0 | 65.80 | 80.64 |
| 16 | 419 | 7.0 | 9.0 | 80.75 | 103.32 |
Copper nickel alloy is often used as alloy pipe in the ocean. Whether it is seawater desalination or marine drainage pipe, it puts forward higher performance requirements. Famous foreign copper condensing tube production plants include American Brass Anaconda company, Duisburg, Germany, Kobe, Sumitomo, Toyama, South Korea, and the British Institute of non ferrous metals. At present, the larger specifications of domestic BFe10-1-1 alloy tubes are 324 mm in diameter produced by Chinalco Luoyang Copper and 324 mm in diameter tested by Zhang Tong of Jiangsu hi tech × 4 mm alloy pipe. 324 mm diameter made in Germany × 16 mm large-diameter white copper pipe is used for export due to its mature technology. The BFe10-1-1 alloy pipe produced in France has a maximum diameter of 400 mm and is used for military exports.
FAQ
Q1: Are you a trading company or manufacturer?
A: We are a factory.
Q2: How long is the delivery?
A: 15-30 working days
Q3: Do you provide samples? is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
If you want to get more information about the products, send me an e-mail or by skype, WhatsApp, etc.
