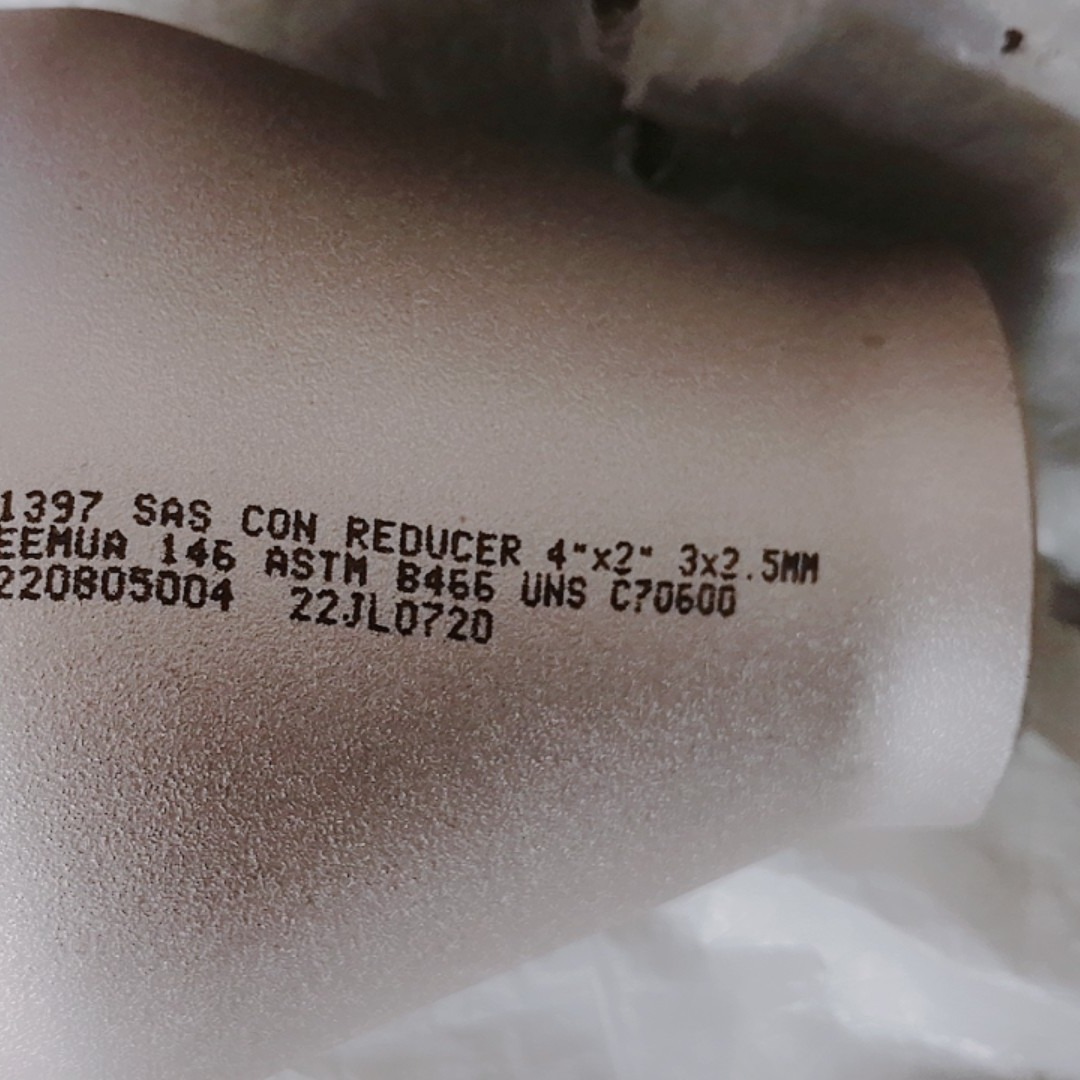

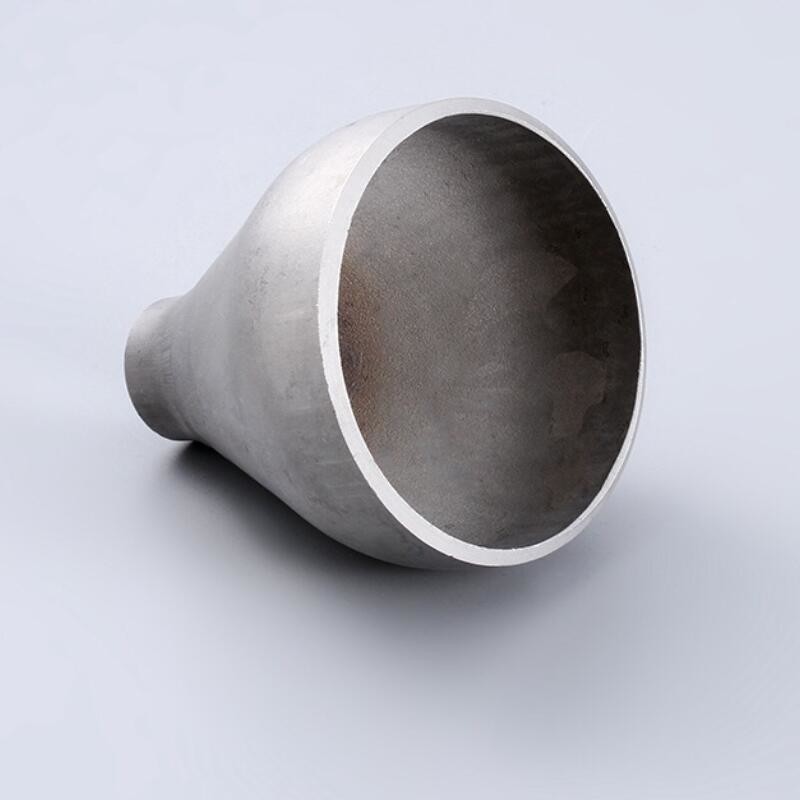

C70600 Eccentric Pipe Reducer

Copper Nickel Reducer 90/10 Copper Nickel Butt Weld Eccentric Reducer

The EEMUA 146 grade fittings are copper-nickel alloy specifications. EEMUA 146 fittings are designed to route, change, and branch connections. These fittings play a critical role in influencing the characteristics of the flow in the system. The EEMUA 146 Pipe Fittings have enhanced corrosion and oxidation resistance properties. These fittings have good anti-fouling properties and showcase enhanced mechanical properties. The EEMUA 146 Copper Nickel Tee is designed with a three-sided opening allowing for media to move across two channels. The versatile EEMUA 146 Tee is produced with two outlets and one inlet that is attached at 90 degrees to the main pipeline. These tees are utilized in equal and reducing sizes. In an EEMUA 146 Reducing Tee one of the channels is made of unequal size, allowing for reduced flow in one of the openings. These tees are available in eccentric and concentric reducers. The EEMUA 146 UNS 7060x Concentric Reducer is a cone-shaped grade that reduces the pipe size from the center. These reducers have a matched center line. EEMUA 146 Eccentric Reducers reduce the pipe from the sides. These reducers possess a mismatched centreline and require to be aligned properly for an even flow of media.

WHAT IS CUPRO NICKEL FITTINGS?
The Tensile Strength of Cupro Nickel Fittings (rolled-H04 for flat products/ hard drawn-H80 for tubing) is 78000 psi (538 MPa). These Cuni Fittings has a Tensile Strength (annealed) of 52000 psi (359 MPa). Copper-Nickel Pipe Fittings are used in various application areas such as pipelines in shipbuilding, oil coolers, electrical resistors, steam turbine condensers, sprung contacts in relays, plug connectors and switches, auxiliary cooling systems and in a large number of cryogenic applications. The Chemical Composition of Copper Nickel Pipe Bend is Cu 71.25-76.5, Fe ≤ 0.20, Pb ≤0.050, Mn ≤ 1.0, Ni 23.5-26.5 and Zn ≤ 1.0. The Molecular Formula of Copper nickel is ‎CuNi. Wall thickness chart help to select the various specifications and thickness of the various types of Cupro Nickel Long Stub that are available. The Thermal Expansion Co-efficient of Copper Nickel Pipe Fittings (@20-300°C/68-572°F) is 9.00 µin/in °F (16.2 µm/m °C). ANSI B16.9 Cu-Ni Welded Buttweld Fittings has a Shear Modulus (C71500 annealed) of 8300 ksi (57.2 GPa). Cupro Nickel 5D Bend are also used in conveying brackish water, clean seawaters and fresh water. Copper Nickel Bellmouth Fittings are also used in fasteners, boat hulls and in heat exchangers. Such Cuni Pipe Fittings also find use in high pressure pre-heaters at fossil fuel power plants and nuclear power plants and Copper Nickel Fuel Pipe Fittings for fuel systems.

APPLICATION OF EEMUA 146 PIPE FITTINGS
Shipbuilding
Desalinization
Heat Exchanger
Offshore
Power Generation
Condenser

EEMUA 146 UNS C7060X BUTT WELD FITTINGS STANDARD

EEMUA 146 PIPE FITTINGS CHEMICAL COMPOSITION

CUNI Reducer DATASHEET
