Carbon steel Socket Weld Pipe Flanges
| Place of Origin | CHINA |
|---|---|
| Brand Name | TOBO |
| Certification | SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED |
| Minimum Order Quantity | 1 |
| Price | depending on quantity |
| Packaging Details | standard export sea-worthy packing |
| Delivery Time | 15-30 working days depending on quantity |
| Supply Ability | 30000 per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Copper Nickel Flange Flange With Neck Butt Welding Factory Direct Support Custom | Product Type | Flange With Neck Butt Welding |
|---|---|---|---|
| Size | 3/4''-24'' | DN15-DN1500 | 15-1500 |
| Material | Carbon Steel | Level | AAA |
| Mode Of Connection | Welding | TYPE | Cross Sectional Type |
| Highlight | Carbon Steel socket weld pipe flanges,DN15 socket weld pipe flanges,DN1500 socket weld raised face flange |
||
Product Description
Copper Nickel Flange Flange With Neck Butt Welding Factory Direct Support Custom
| Product Name | Copper Nickel Flange Flange With Neck Butt Welding Factory Direct Support Custom |
| Standard | ASMEB16.5 |
| Size | 3/4’’~24’’ |
| Pressure Rate | 150lb to 1500lb |
| Manufacturing process | Push, Press, Forge, Cast, etc. |
| Material | carbon steel |
|
Stainless Steel flange
|
ASTM A182 F304/304H/304L ASTM A182 F316/316H/316L ASTM A182 F321/321H ASTM A182 F347/347H |
|
Nickel Alloys Flanges
|
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276 |
| Copper Alloys Flange | Copper, Brass & Gunmetal |
| Manufacture Standard |
ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673 B.S : BS4504 , BS4504, BS1560, BS10 |
| Package | Wooden cases, pallets, nylon bags or according to the customers' requirements |
| MOQ | 1pcs |
| Delivery time | 10-100 days depending on quantity |
| Payment terms | T/T or Western Union or LC |
| Shipment | FCA Tianjin/Shanghai, CFR, CIF, etc |
| Application | Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc |
| Remarks | Other materials and drawings are available. |
The welding distance from the joint surface is large, the joint surface can be free from welding temperature deformation, and take a more complex cough body structure, suitable for pressure or temperature fluctuations of the pipeline or high temperature, high pressure and low temperature pipeline, generally used for PN greater than 2.5MPa pipe and valve connection; It is also used to transport expensive, flammable, explosive media pipeline. In the process of production, the butt welding flange in the production and welding of strict control of technical parameters, to ensure that can play a full role in the production and use of value.

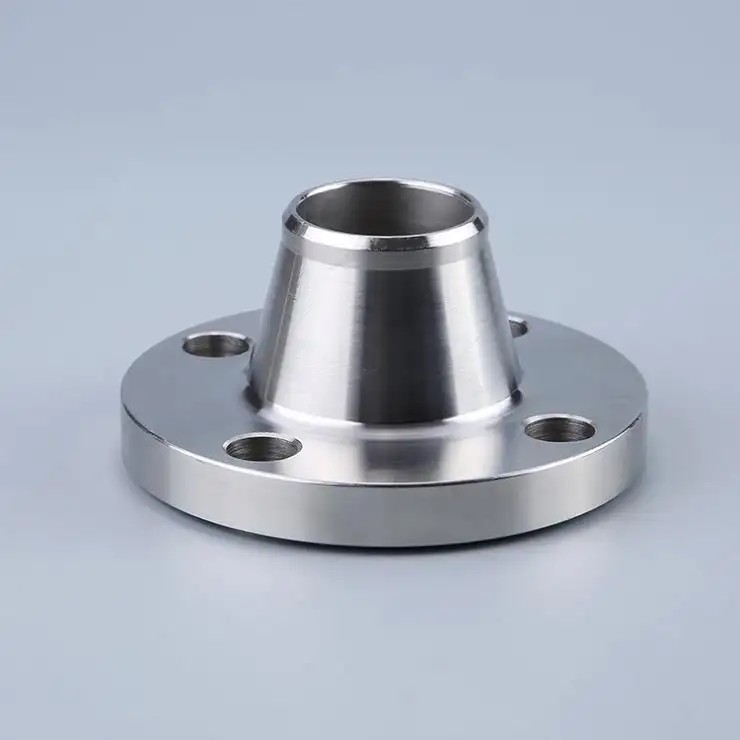

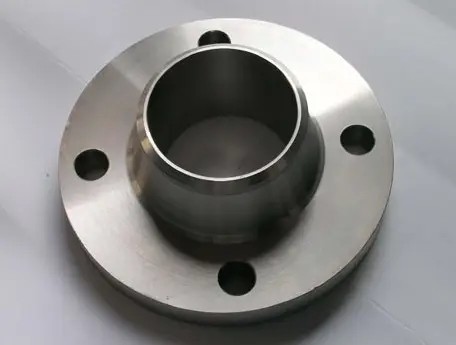

Butt welding flange is a flange with neck and a round tube transition and connected with the pipe butt welding. It is not easy to deform, sealed well, widely used, has the corresponding rigidity and elasticity requirements and reasonable butt welding thinning transition
